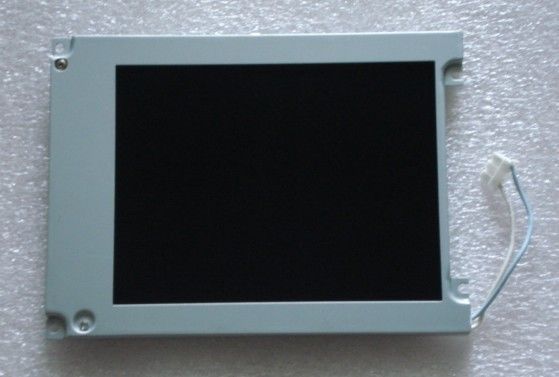

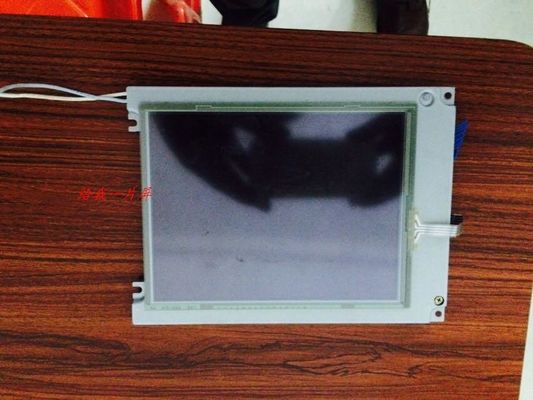

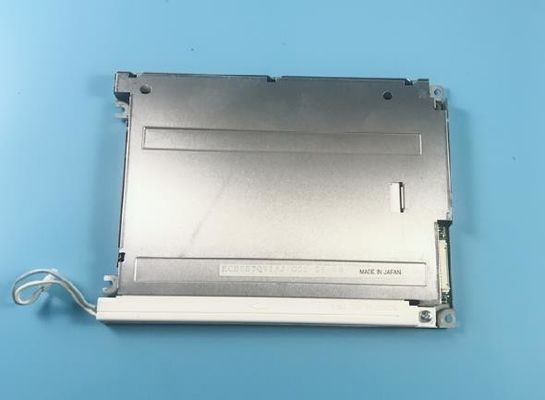

Product Details:
|
| MODEL NUMBER: | CS057QV1AD-G23 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 160 (Typ.)(cd/m²) | Screen Type: | LCM , CSTN-LCD |
| Backlight: | 1 Pcs CCFL , 40K Hours , Optional | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Detail : | Manufacturer | Model Name | KCS057QV1AD-G23 | |
|---|---|---|---|---|
| Panel Type | CSTN-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 160 cd/m² (Typ.) | Contrast Ratio | 40 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 220/110 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.350 | Support Color | Color |
| Color Temperature | 6022K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 35% | sRGB | 48% coverage |
| Adobe RGB | 36% coverage | DCI-P3 | 36% coverage | |
| Rec.2020 | 26% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 154.6(W)×114.8(H) mm |
| Bezel Opening | 120.2(W)×91.4(H) mm | Overall Depth | 10.3±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Touchscreen : | TP Controller | - | TP Interface | - |
| Touch Points | - | TP Technology | 4-wire Resistive Touch | |
| Fixation : | Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel | |||
| Other Detail : | Mass | 240g (Typ.) | Surface | Glare (Haze 0%) |
| Refresh Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Input Current | 3.0mA (Typ.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 210/325mW (Typ./Max.) | Signal Interface | Parallel Data (8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 51021-1500 | 1 pcs | 1.25 mm | 15 pins | PD-15P1C8B-010B | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 2.0/5.0/6.0mA (Min./Typ./Max.) | Input Voltage | 320V (Typ.) | ||
| Frequency | 30/100KHz (Min./Max.) | Turn-on Voltage | 530/795V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | Optional | |||||
