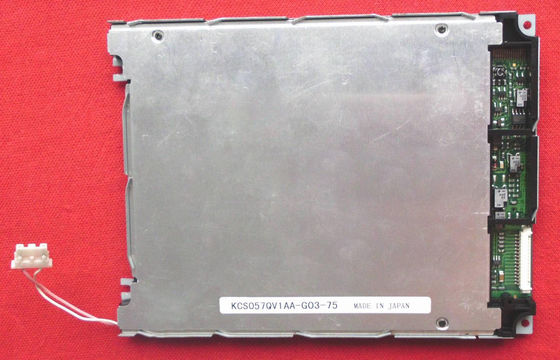

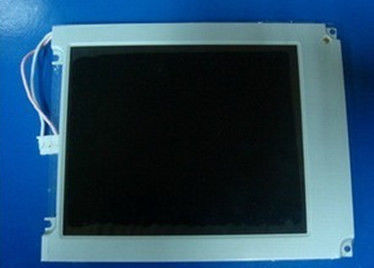

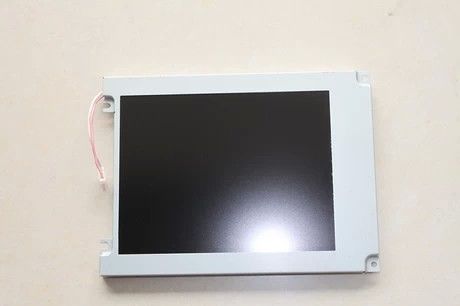

KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY

KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY
KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY

Large Image :  KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KCS057QV1AA-G03
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: KCS057QV1AA-G03 BRAND: Kyocera
RESOLUTION: 320×240RGB SIZE: 5.7INCH
BRIGHTNESS: 110 Cd/m² (Typ.) Type: CSTN-LCD , LCM
Interface Type: Parallel Data (8-bit) 15 Pins Connector TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C
Highlight:

CCFL CSTN LCD Panel

,

VGA Lcd Video Panel

Kyocera KCS057QV1AA-G03 Application Details

Basic Information :
Brand

KCS057QV1AA-G03KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY 0 1 CompatibleModel
Type
CSTN-LCD , LCM
Used For

5.7 inchScreen Size
Alias
KCS3224ASTT-X7
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS
Vibratio

n



Kyocera KCS057QV1AA-G03 Mechanical Details

Pixel Features :
Resolution
320(RGB)×240, QVGA
Dot Pitch(mm)
0.120×0.360 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.360×0.360 (H×V) [70PPI]
Mechanical Size :
Active Area(mm)
115.2(H) × 86.4(V)
Bezel Area(mm)
120.2(H) × 91.4(V)
Outline Dim.(mm)
154.6(H) × 114.8(V)
Depth(mm)
8.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
Other Spec :
Weight
200g (Typ.)
Treatment
Glare (Haze 0%)



Kyocera KCS057QV1AA-G03 Optical Details

Basic Information :
Luminance(cd/m²)
110 (Typ.)
Contrast Ratio
25:1 (Typ.) (Transmissive)
Viewing Angle
50/50/30/30 (Typ.)(CR≥2)
Display Mode
STN, Normally Black, Transmissive
Best View on
-
Response(ms)
220/110 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.300; Wy:0.330
Display Colors
Color
Color Temperature
7203K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
38%
sRGB
51% coverage
Adobe RGB
40% coverage
DCI-P3
39% coverage
Rec.2020
28% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera KCS057QV1AA-G03 Electronics Details

Frame Rate :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KCS057QV1AA-G03 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
3.0mA (Typ.)
Consumption
211/330mW (Typ./Max.)
Signal Type :
Parallel Data (8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
molex
51021-1500
1.25 mm
15 pins
1 pcs
PD-15P1C8B-010B



Kyocera KCS057QV1AA-G03 Backlight Details

Backlight Features :
Type
CCFL
Quantity
1 pcs
Position
Edge light type (Bottom side)
Replacement
-
Shape
Straight
Life Time
25K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
315V (Typ.)
Current Supply
3.0/5.0/6.0mA (Min./Typ./Max.)
Frequency
30/100KHz (Min./Max.)
Startup Voltage
510/770V (Max.)(Ta=+25/0℃)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL
Backlight Driver :
Optional



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
