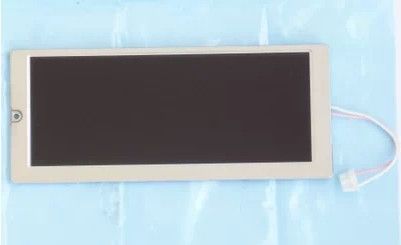

KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY

KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY
KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY

Large Image :  KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KCG089HV1AC-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera SIZE: 8.9INCH
MODEL NUMBER: KCG089HV1AC-G00 RESOLUTION: 640×240RGB
BRIGHTNESS: 120 Cd/m² (Typ.) Panel Type: CSTN-LCD, LCM
Signal Interface: Parallel Data (8-bit) , 20 Pins Connector TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C
Highlight:

CCFL CSTN LCD Panel

,

VGA Lcd Video Panel

Kyocera KCG089HV1AC-G00 Application Details

Basic Detail :
Manufacturer

KCG089HV1AC-G00Model Name
Panel Type
CSTN-LCD , LCM
Another Name
-
Panel Size
8.9 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS
Vibration Leve

l



Kyocera KCG089HV1AC-G00 Optical Details

Basic Detail :
Luminance
120 cd/m² (Typ.)
Contrast Ratio
30:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
190/180 (Typ.)(Tr/Td) ms
Viewing Angle
50/50/35/20 (Typ.)(CR≥2)
Operating Mode
STN, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.290; Wy:0.290
Support Color
Color
Color Temperature
8914K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
38%
sRGB
53% coverage
Adobe RGB
40% coverage
DCI-P3
40% coverage
Rec.2020
29% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera KCG089HV1AC-G00 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×240, HVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.110×0.330 mm
Pixel Pitch(W×H)
0.330×0.330 mm [76PPI]
Physical Size :
Active Viewing
211.18(W)×79.18(H) mm
Overall Dim.
246(W)×103(H) mm
Bezel Opening
218.4(W)×86.4(H) mm
Overall Depth
9.8/14.3 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
8:3
Shape Style

Touchscreen :
TP Controller
-
TP Interface
-
Touch Points
-
TP Technology
4-wire Resistive Touch
Fixation :
Rear mounting holes (4-Φ2.6, 1-Φ2.0, 1-R2.0x3.0)
Other Detail :
Mass
325g (Typ.)
Surface
Glare (Haze 0%)



Kyocera KCG089HV1AC-G00 Electronics Details

Refresh Rate :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KCG089HV1AC-G00 Interface Detail

Signal Electrical :
Input Current
35/24mA (Typ.)(3.3V/5.0V)(IDD)
Input Voltage
3.3/5.0V (Typ.)(VDD)
Consumption
-
Signal Interface
Parallel Data (8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
08-6210-020-340-800+
0.5 mm
20 pins
1 pcs
PD-20P1C8B-010A



Kyocera KCG089HV1AC-G00 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
1 pcs
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
Straight
Lamp Life
54K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
515V (Typ.)
Input Current
3.0/5.0/6.0mA (Min./Typ./Max.)
Frequency
40/100KHz (Min./Max.)
Turn-on Voltage
880/1317V (Max.)(Ta=+25/0℃)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL
Backlight Driver :
Optional



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY 0KCG089HV1AC-G00 Kyocera 8.9INCH LCM 640×240RGB 120NITS CCFL INDUSTRIAL LCD DISPLAY 1
