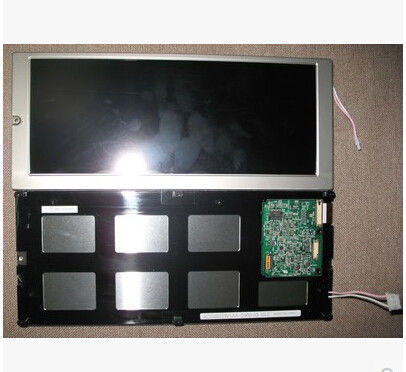

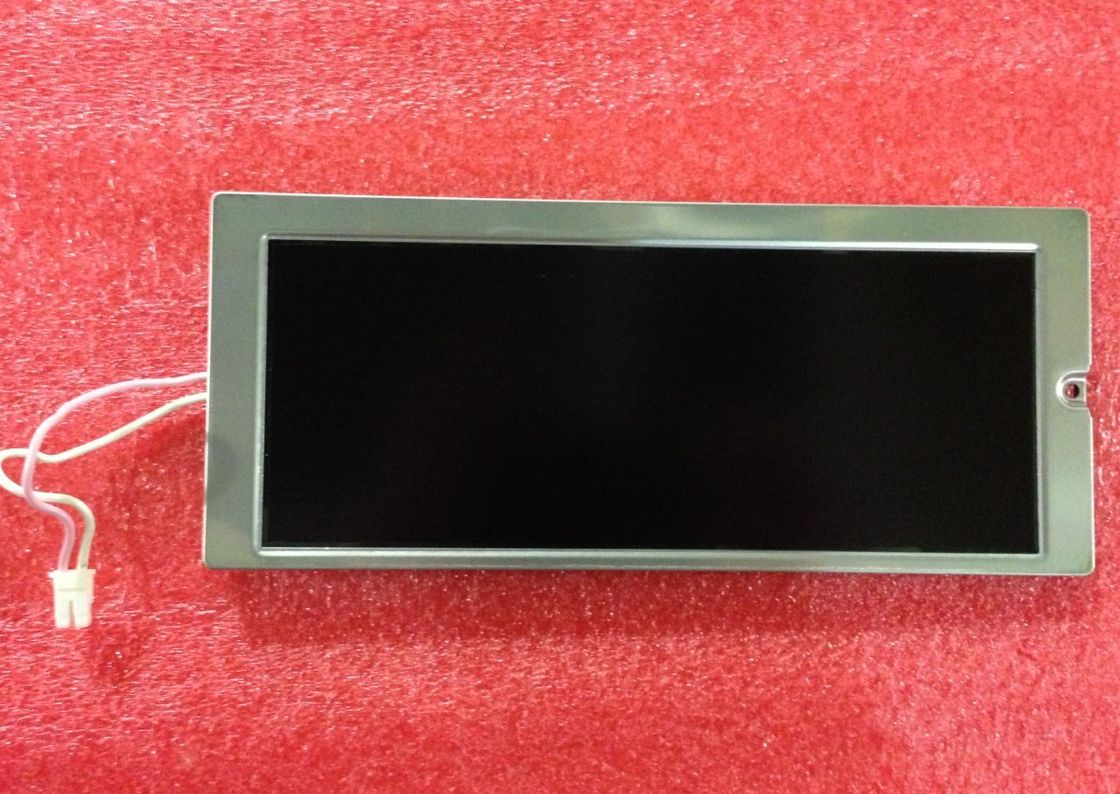

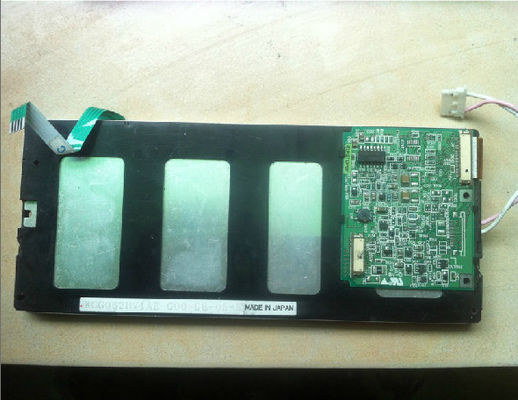

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | KCG089HV1AA-G00 |
|---|---|---|---|
| SIZE: | 8.9INCH | RESOLUTION: | 640×240RGB |
| BRIGHTNESS: | 150 Cd/m² (Typ.) | Signal Interface: | Parallel Data (8-bit) , 20 Pins Connector |
| Panel Type: | CSTN-LCD , LCM | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | KCG089HV1AA-G00 | |
|---|---|---|---|---|
| Type | LCM CSTN-LCD | Used For | ||
| Screen Size | 8.9" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration |
| Pixel Features : | Resolution | 640(RGB)×240, HVGA | Dot Pitch(mm) | 0.110×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.18(H) × 79.18(V) | Bezel Area(mm) | 218.4(H) × 86.4(V) |
| Outline Dim.(mm) | 246(H) × 103(V) | Depth(mm) | 8.0/12.2 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Ф2.6) | |||
| Other Spec : | Weight | 250g | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 150 (Typ.) | Contrast Ratio | 30:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 50/50/35/20 (Typ.)(CR≥2) | Display Mode | STN, Normally Black, Transmissive | |
| Best View on | - | Response(ms) | 190/180 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.290; Y:0.290 | Display Colors | Color |
| Color Temperature | 8914K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 38% | sRGB | 53% coverage |
| Adobe RGB | 40% coverage | DCI-P3 | 40% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VDD) | Current Supply | 35.0/24.0mA (Typ.)(3.3V/5.0V)(IDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel Data (8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-020-340-800+ | 1 pcs | 20 pins | 0.5 mm | ||
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 54K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 515V (Typ.) | Current Supply | 2.0/5.0/6.0mA (Min./Typ./Max.) | ||
| Frequency | 40/100KHz (Min./Max.) | Startup Voltage | 880/1317V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.58W (Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | Optional | |||||
