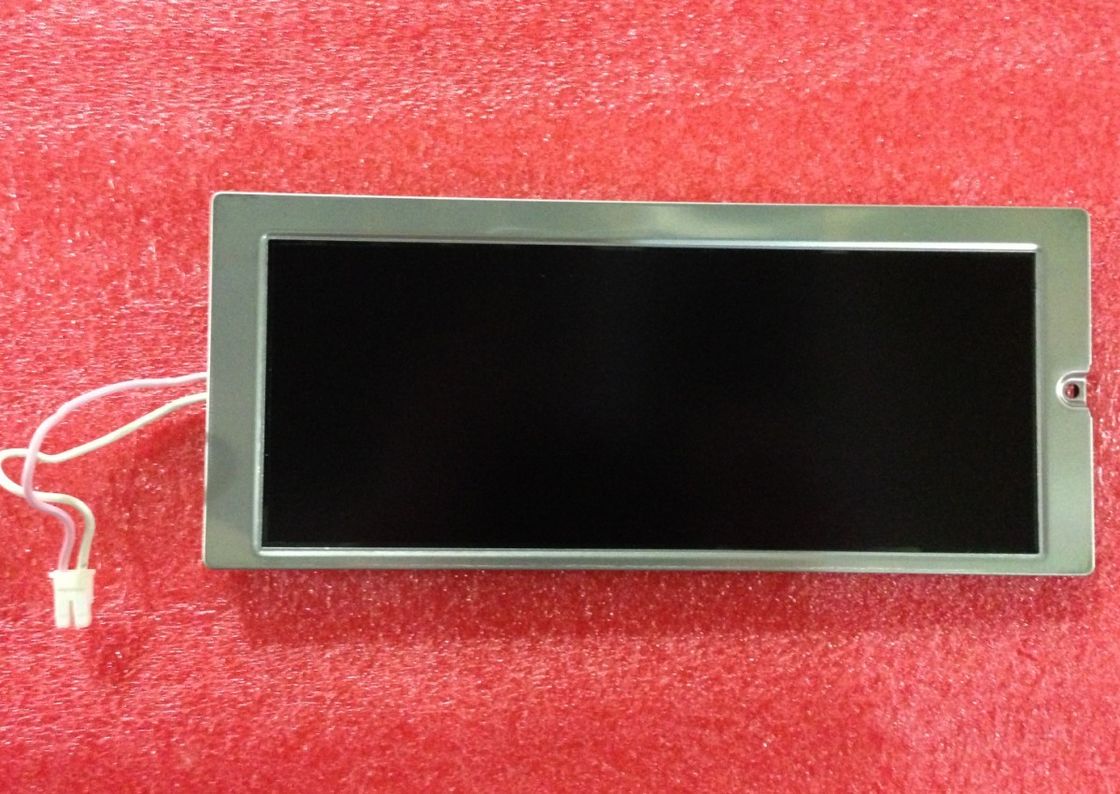

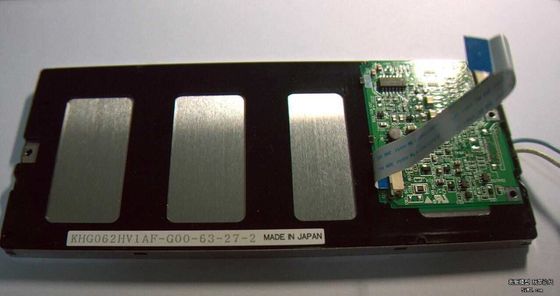

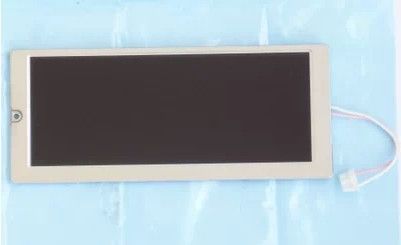

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | KCG062HV1AE-G00 |
|---|---|---|---|
| SIZE: | 6.2INCH | RESOLUTION: | 640×240RGB |
| BRIGHTNESS: | 130 Cd/m² (Typ.) | Screen Type: | LCM , CSTN-LCD |
| Signal Type: | Parallel Data (8-bit) , 20 Pins Connecto | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| KCG062HV1AE-G00 | CSTN-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| - | 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 6.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×240, HVGA | RGB Vertical Stripe | 0.077×0.231 mm | 0.231×0.231 mm [109PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 147.82×55.42 mm | 152.4×60.0 mm | 174.2×73.4 mm | 9.4/13.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 8:3 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | - | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 170g (Typ.) | - | Glare (Haze 0%) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 130 cd/m² (Typ.) | STN, Normally Black, Transmissive | 30:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 50/50/30/20 (Typ.)(CR≥2) | 190/180 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | Color | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 33% | 46% | 34% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 34% | 24% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Refresh Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 54K(Typ.) | 1 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 395V (Typ.) | 2.0/5.0/6.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 40/100KHz (Min./Max.) | 645/965V Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| Optional | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 55/83mA (Typ./Max.) | 182/274mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-020-340-800 | 1 pcs | 20 pins | 0.5 mm | PD-20P1C8B-010A | |
