Product Details:
|

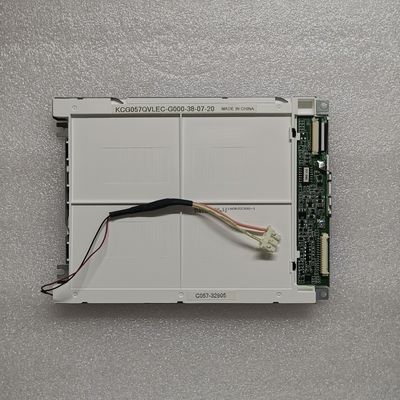

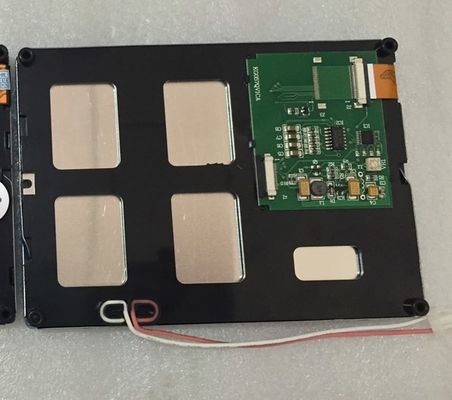

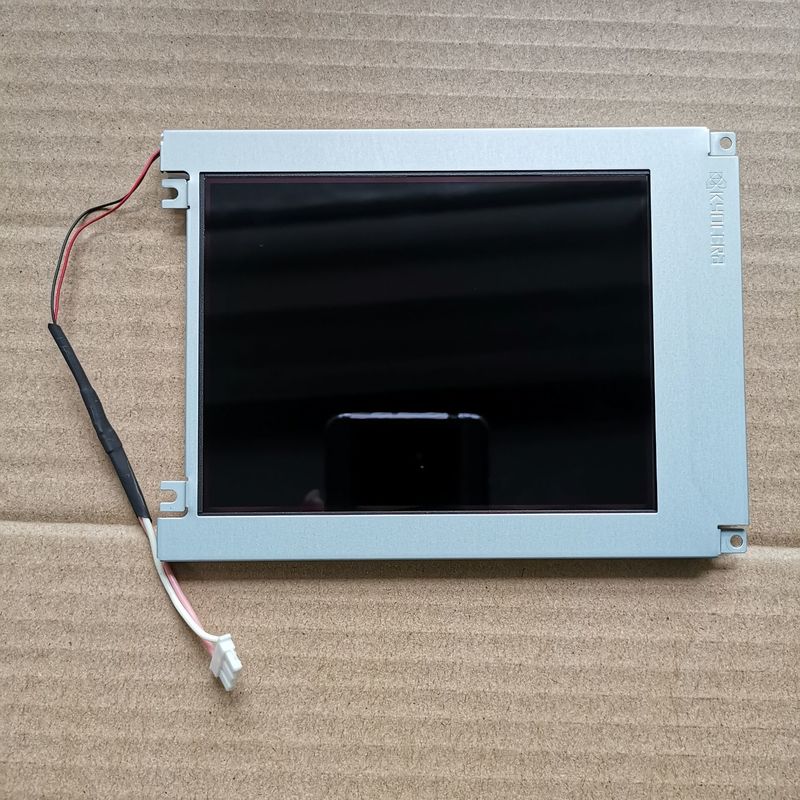

| BRAND: | Kyocera | MODEL NUMBER: | KCG057QVLEC-G000 |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 200 Cd/m² (Typ.) | Panel Type: | CSTN-LCD , LCM |
| Signal Interface: | Parallel Data (8-bit) , 15 Pins Connector | Environment: | Operating Temp.: 0 ~ 60 °C |
| Highlight: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| KCG057QVLEC-G000 | CSTN-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C | -20 ~ 70 °C |
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.2×86.4 mm | 120.2×91.4 mm | 154.6×114.8 mm | 8.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 170g (Typ.) | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | STN, Normally Black, Transmissive | 55:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 50/50/20/35 (Typ.)(CR≥2) | - | 320/170 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7816K | Color | X:0.290; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 36% | 50% | 38% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 37% | 27% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3/5.0V (Typ.)(VDD) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment  |
| molex | 53261-1571 | 1 pcs | 1.25 mm | 15 pins | PD-15P1C8B-010B | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | Array | - | 20K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 225/285mA (Typ./Max.) | 5.0/5.2V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Wire | No | ||||
