G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Certification
China Sapientia Display Co.,LIMITED certification
Customer Reviews
Dear Kay, We receive the product yesterday,your goods are superior in quality compared with other supplier. Thank you for your help. Best and Regards, Adam

—— Adam Davis

Thank you for your good service and product,hope our cooperation can be even more long-time and be happy!

—— Eric Wilson

I'm Online Chat Now

G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY
G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

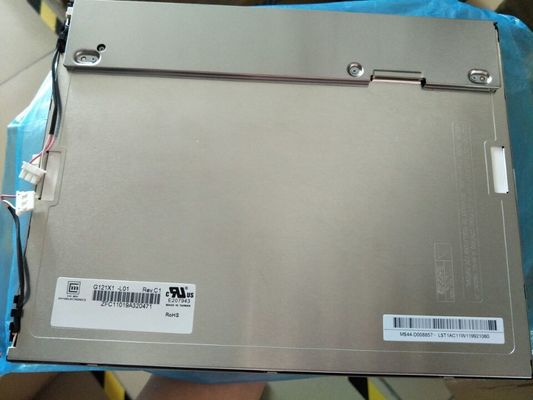

Large Image :  G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CMO
Certification: ISO9001
Model Number: G121X1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G121X1-L01 BRAND: CMO
SIZE: 12.1INCH BRIGHTNESS: 450 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1024(RGB)×768 [XGA] 105PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C
High Light:

IPS Lcd Display Panels

,

RGB Vertical LCD Display

,

LVDS TFT LCD Module

CMO G121X1-L01 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  G121X1-L01 a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  -30 ~ 70 °C -40 ~ 80 °C



CMO G121X1-L01 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
450 (Typ.) 80/80/80/80 (Typ.)(CR≥10) 13/12 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 700 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
7176K 262K (6-bit) X:0.303; Y:0.319
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
46% 64% 48%
DCI-P3 Coverage Rec.2020 Coverage Remarks
48% 34% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.40 (Typ./Max.)(5 points)



CMO G121X1-L01 Mechanical Features

Panel Size : 12.1"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1024(RGB)×768 [XGA] RGB Vertical Stripe 0.240×0.240 [105PPI] 0.080×0.240
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
245.76(H) × 184.32(V) 249.0(H) × 187.5(V) 260.5(H) × 204(V) 8.42/12.7 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Side mounting holes (4-M2) on left, right bezel
Other Detail : Weight Panel Cover Treatment
660g (Max.) - Antiglare (Haze 25%), Hard coating (3H)





CMO G121X1-L01 Electronics Features

Reverse Scan : No
Vertical Frequency : 60Hz



CMO G121X1-L01 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
CCFL Edge light type (Top and Bottom) 2 pcs Straight 50K(Min.) -
CCFL Electrical : Voltage Supply Current Supply Power
470±47V 2.0/8.0/8.5mA (Min./Typ./Max.) 7.52W (Typ.)
Operating Frequency Kick-off Voltage
45/80KHz (Min./Max.) 1010/1200V (Max.)(Ta=+25/0℃)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL



CMO G121X1-L01 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 510/650mA (Typ./Max.) 1.68W (Typ.)
Interface Features : Position Signal Type
- LVDS (1 ch, 6-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JAE FI-SEB20P-HFE 1.25 mm 20 pins 1 pcs LVDS-20P1C6B-070A



CMO G121X1-L01 Packing Features

Package Box : Quantity Weight Box Size
15 pcs / box 11.15 Kgs 461×362×314 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY 0G121X1-L01 CMO 12.1" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY 1
