KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY

KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY
KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY

Large Image :  KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KCG057QVLDG-G760
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: KCG057QVLDG-G760
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 245 Cd/m² (Typ.) Signal Type: Parallel Data (8-bit)
Screen Type: LCM, CSTN-LCD Max. Ratings: Storage Temp.: -20 ~ 60 °C
Highlight:

CCFL CSTN LCD Panel

,

VGA Lcd Video Panel

Kyocera KCG057QVLDG-G760 Application Details

Basic Information :
Brand

KCG057QVLDG-G760Model
Type
CSTN-LCD , LCM
Used For

5.7 inchScreen Size
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 60 °C
RoHS
Vibratio

n



Kyocera KCG057QVLDG-G760 Mechanical Details

Pixel Features :
Resolution
320(RGB)×240, QVGA
Dot Pitch(mm)
0.120×0.360 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.360×0.360 (H×V) [70PPI]
Mechanical Size :
Active Area(mm)
115.2(H) × 86.4(V)
Bezel Area(mm)
119.4(H) × 90.6(V)
Outline Dim.(mm)
144(H) × 104.8(V)
Depth(mm)
9.0/13.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Rear mounting poles (4-Φ2.6)
Other Spec :
Weight
175g (Typ.)
Treatment



Kyocera KCG057QVLDG-G760 Optical Details

Basic Information :
Luminance(cd/m²)
245 (Typ.)
Contrast Ratio
40:1 (Typ.) (Transmissive)
Viewing Angle
100(H);120V)
Display Mode
STN, Normally Black, Transmissive
Best View on
-
Response(ms)
250/200 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
-
Display Colors
Color



Kyocera KCG057QVLDG-G760 Electronics Details

Frame Rate :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KCG057QVLDG-G760 Interface Detail

Signal Electrical :
Voltage Supply
3.3/5.0V (Typ.)(VDD)
Current Supply
29/19mA (Typ.)(3.3V/5.0V)(IDD)
Signal Type :
Parallel Data (8-bit)



Kyocera KCG057QVLDG-G760 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Typ.) (Hours)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY 0

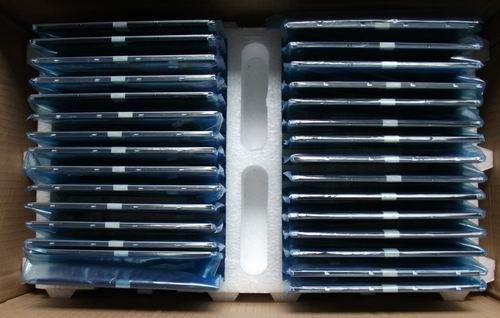

KCG057QVLDG-G760 Kyocera 5.7INCH LCM 320×240RGB 245NITS WLED INDUSTRIAL LCD DISPLAY 1
