KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY
KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

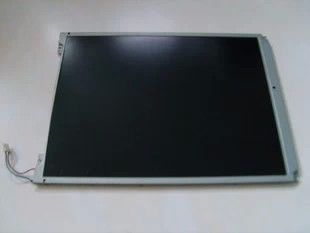

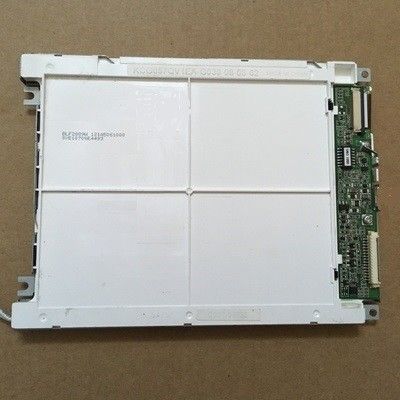

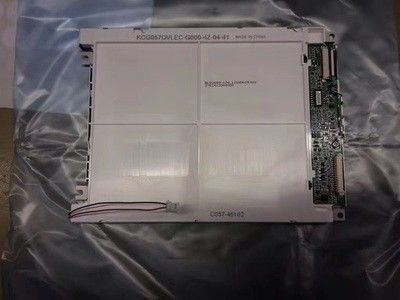

Large Image :  KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KCG057QV1EA-G030
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 300PCS
Contact Now

KCG057QV1EA-G030 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: KCG057QV1EA-G030 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 200 Cd/m² (Typ.) Lamp Type: 1 Pcs CCFL , 54K Hours , Without Driver
Signal Interface: Parallel Data (8-bit) , 15 Pins Connector Environment: Operating Temp.: 0 ~ 60 °C
Highlight:

CCFL CSTN LCD Panel

,

VGA Lcd Video Panel

Kyocera KCG057QV1EA-G030 Application Details

Basic Info :
Panel Brand

KCG057QV1EA-G030Panel Model
Diagonal Size
5.7"
Application

CSTN-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
0 ~ 60 °C
Storage Temp.
-20 ~ 70 °C
RoHS State
Vibration Ratin

g



Kyocera KCG057QV1EA-G030 Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.120×0.360 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Bezel Area
117.2×88.4 mm (H×V)
Outline Dim.
154.6×114.8 mm (H×V)
Outline Depth
8.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
Other Features :
Weight
165g
Surface
Glare (Haze 0%)



Kyocera KCG057QV1EA-G030 Optical Details

Basic Information :
Brightness
200 cd/m² (Typ.)
Contrast Ratio
55:1 (Typ.) (Transmissive)
Viewing Angle
35/35/60/70 (Typ.)(CR≥2)
Optical Mode
STN, Normally Black, Transmissive
Viewing Direction
6 o'clock
Response Time
250/200 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
Color
Color Temperature
6638K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
59%
sRGB
79% coverage
Adobe RGB
61% coverage
DCI-P3
61% coverage
Rec.2020
44% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera KCG057QV1EA-G030 Electronics Details

Frame Frequency :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240





Kyocera KCG057QV1EA-G030 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
54K(Typ.) (Hours)
Replacement
-
Lamp Shape
Straight
Position
Edge light type
Lamp Electrical :
Voltage Input
320V (Typ.)
Current Input
3.0/5.0/6.0mA (Min./Typ./Max.)
Frequency
40/100KHz (Min./Max.)
Kick-off Voltage
530/795V (Max.)(Ta=+25/0℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL



Kyocera KCG057QV1EA-G030 Interface Detail

Signal Systerm :
Parallel Data (8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3/5.0V (Typ.)(VDD)
Current Input
-
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
molex
53261-1571
1.25 mm
15 pins
1 pcs
