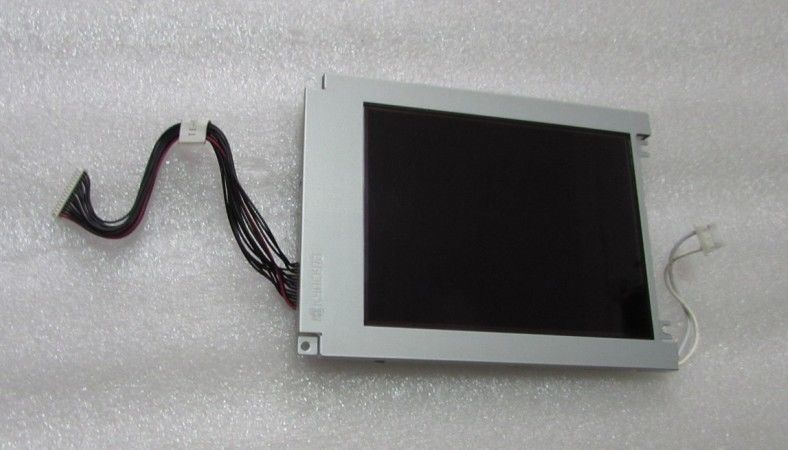

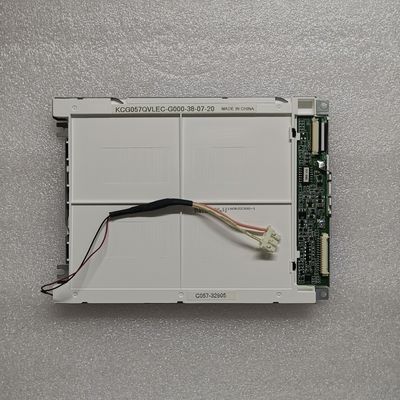

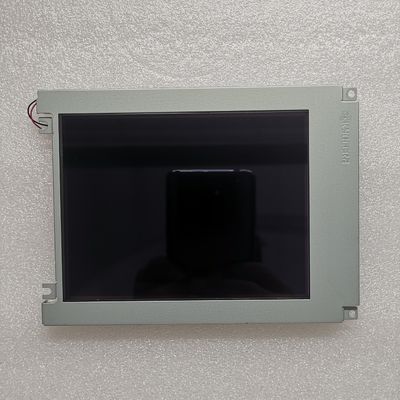

Product Details:
|
| MODEL NUMBER: | KCG057QV1EA-G000 | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 320×240RGB | SIZE: | 5.7INCH |
| BRIGHTNESS: | 250 Cd/m² (Typ.) | Backlight: | 1 Pcs CCFL , 54K Hours , No Driver |
| Screen Type: | LCM, CSTN-LCD | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Detail : | Manufacturer | Model Name | KCG057QV1EA-G000 | |
|---|---|---|---|---|
| Panel Type | CSTN-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 55 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 180/170 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 50/50/20/35 (Typ.)(CR≥2) | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | Color |
| Color Temperature | 6638K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 38% | sRGB | 51% coverage |
| Adobe RGB | 40% coverage | DCI-P3 | 39% coverage | |
| Rec.2020 | 28% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 154.6(W)×114.8(H) mm |
| Bezel Opening | 117.2(W)×88.4(H) mm | Overall Depth | 8.5±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.0, 2-R1.6) on left, right bezel | |||
| Other Detail : | Mass | TBD | Surface | Glare (Haze 0%) |
| Refresh Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3/5.0V (Typ.)(VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (8-bit) | |||

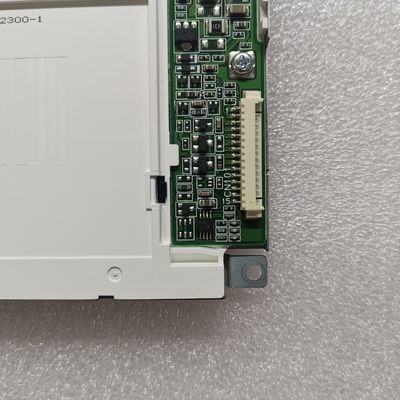

| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 53261-1571 | 1 pcs | 1.25 mm | 15 pins | ||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 54K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/5.0/6.0mA (Min./Typ./Max.) | Input Voltage | 320V (Typ.) | ||
| Frequency | 40/100KHz (Min./Max.) | Turn-on Voltage | 530/795V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
