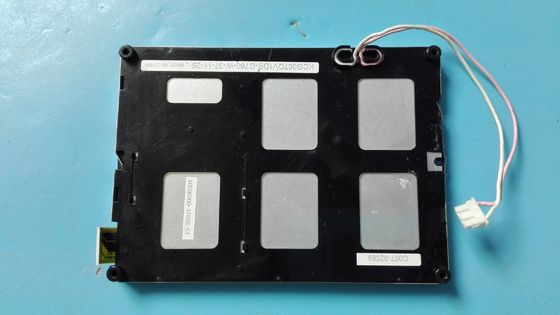

Product Details:
|
| MODEL NUMBER: | KCG057QV1DC-G760 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | Panel Type: | CSTN-LCD, LCM |
| Lamp Type: | 1 Pcs CCFL , 75K Hours | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | KCG057QV1DC-G760 | |
|---|---|---|---|---|
| Type | LCM CSTN-LCD | Used For | ||
| Screen Size | 5.7" | Alias | - | |
| Environment : | Storage Temp. | - | Operating Temp. | 0 ~~ 60 °C |
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 119.4(H) × 90.6(V) |
| Outline Dim.(mm) | 144(H) × 104.8(V) | Depth(mm) | 10.8/15.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| Mounting : | Rear mounting poles (4-Φ2.6) | |||
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 40:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 100(H);120V) | Display Mode | STN, Normally Black, Transmissive | |
| Best View on | - | Response(ms) | - | |
| Color Performance : | White Coordinate | - | Display Colors | Color |
| Frame Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.8(H)×15.3(D) mm, viewing area size of 119.4(W)×90.6(H) mm. As a STN, Normally Black, Transmissive LCM product, KCG057QV1DC-G760 can provides 300 cd/m² display brightness 40:1 transimissive contrast ratio, 100(H);120V) (L/R/U/D) viewing angle ., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 75K hours. It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of KCG057QV1DC-G760 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Kyocera.
