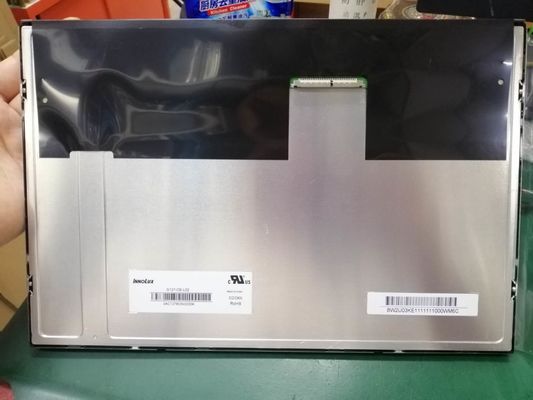

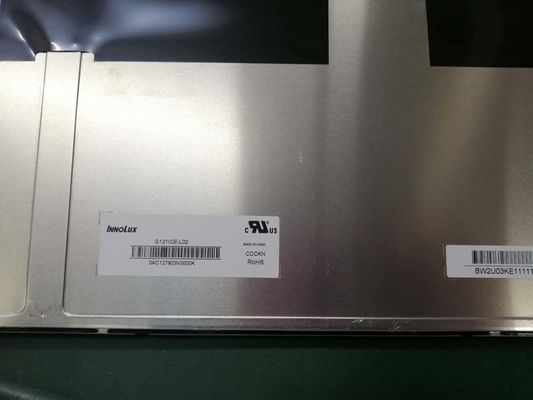

Product Details:
|
| MODEL NUMBER: | G121ICE-L02 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 12.1INCH | BRIGHTNESS: | 400 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×800 (WXGA) 124PPI |
| VIEWING ANGLEG: | 88/88/88/88 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | IPS Lcd Display Panels,RGB Vertical LCD Display,LVDS TFT LCD Module |
||
| Basic Info : | Panel Brand | Panel Model | G121ICE-L02 | |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 261.12×163.2 mm (H×V) | Bezel Area | 264.12×166.2 mm (H×V) |
| Outline Dim. | 278×184 mm (H×V) | Outline Depth | 7.6/11 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 470/490g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 12/8 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.4 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 8.05W (Typ.) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.55/1.0A (Typ./Max.) | ||
| Consumption | 6.6W (Typ.) | |||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 20 pcs / box | 17 Kgs | 465×362×314 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
