G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY

G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY
G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G121ICE-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G121ICE-L01 BRAND: INNOLUX
SIZE: 12.1INCH BRIGHTNESS: 600 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1280(RGB)×800 [WXGA] 124PPI
TEMPERATURE RANGE: Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 85 °C VIEWING ANGLEG: 88/88/88/88 (Typ.)(CR≥10
High Light:

IPS Lcd Display Panels

,

RGB Vertical LCD Display

,

LVDS TFT LCD Module

Innolux G121ICE-L01 Application Details

Basic Info : Panel Brand   Panel Model G121ICE-L01
Diagonal Size 12.1" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -30 ~ 80 °C Storage Temp. -30 ~ 85 °C
RoHS State   Vibration Rating 1.5G (14.7 m/s²)



Innolux G121ICE-L01 Mechanical Details

Pixel Features : Pixel Format 1280(RGB)×800 [WXGA] Dot Pitch 0.068×0.204 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.204×0.204 mm (H×V) [124PPI]
Mechanical Size : Display Area 261.12×163.2 mm (H×V) Bezel Area 264.12×166.2 mm (H×V)
Outline Dim. 278×184 mm (H×V) Outline Depth 7.6/11 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:10 (H:V) Shape Style
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Other Features : Weight 455g (Typ.) Surface Antiglare, Hard coating (3H)



Innolux G121ICE-L01 Optical Details

Basic Information : Brightness 600 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Optical Mode AAS, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 12/8 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 8-bit)
Color Temperature 6485K White Uniformity 1.25/1.4 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 94% coverage
Adobe RGB 73% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G121ICE-L01 Electronics Details

Frame Frequency : 60Hz
Reverse Scan : No
Power Consumption : 11.05W (Typ.)



Innolux G121ICE-L01 Backlight Details

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 50K(Min.) (Hours)
Replacement - Amount - Position Edge light type
Interface Features : Type Included in panel signal interface Position - Lamp Driver With LED Driver
Driver Electrical : Voltage Input 12.0±1.2V Current Input 0.8/1.0A (Typ./Max.)



Innolux G121ICE-L01 Interface Details

Signal Systerm : LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 440±40mA
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
P-TWO 187114-30091 1.0 mm 30 pins 1 pcs

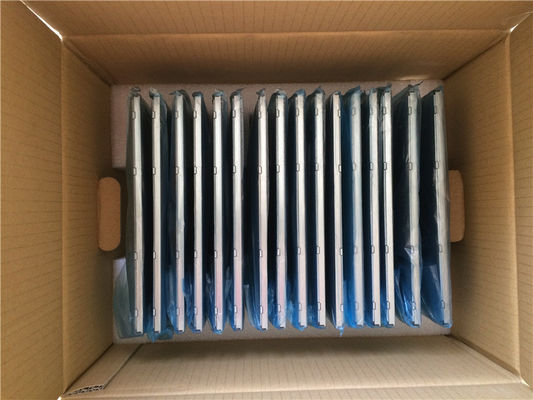

Innolux G121ICE-L01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
20 pcs / box 17 Kgs 465×362×314 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY 0G121ICE-L01 INNOLUX 12.1" 1280(RGB)×800 600 cd/m² INDUSTRIAL LCD DISPLAY 1
