G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY
G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

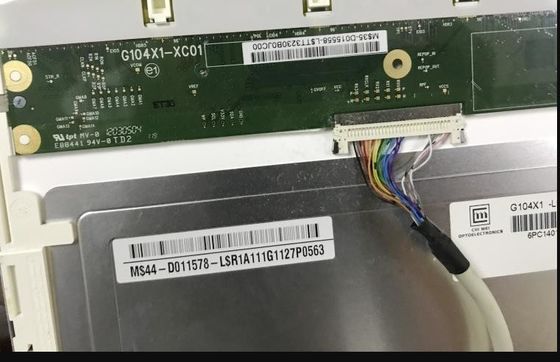

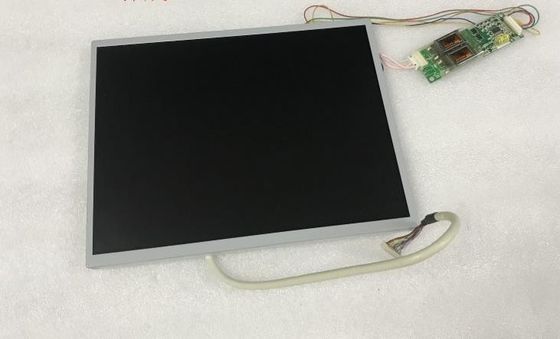

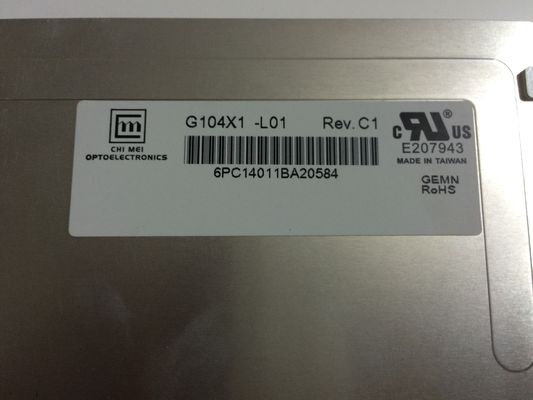

Large Image :  G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G104X1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

G104X1-L01 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G104X1-L01 BRAND: INNOLUX
SIZE: 10.4 Inch BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 1024(RGB)×768, XGA, 123PPI
VIEWING ANGLEG: 88/88/88/88 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
High Light:

IPS Lcd Display Panels

,

RGB Vertical LCD Display

,

LVDS TFT LCD Module

Chimei Innolux G104X1-L01 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  G104X1-L01 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -20 ~ 70 °C -20 ~ 80 °C

Chimei Innolux G104X1-L01 Mechanical Features

Screen Size : 10.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1024(RGB)×768, XGA RGB Vertical Stripe 0.0685×0.2055 mm 0.2055×0.2055 mm [123PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
210.4×157.8 mm 215.4×161.8 mm 225.5×176.3 mm 8.7/10.67 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
480g (Typ.) - Antiglare (Haze 25%), Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel



Chimei Innolux G104X1-L01 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
400 cd/m² (Typ.) Super MVA, Normally Black, Transmissive 1200:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 88/88/88/88 (Typ.)(CR≥10) 14/11 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
5646K 16.2M (6-bit + FRC) X:0.329; Y:0.346
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
57% 80% 60%
DCI-P3 Coverage Rec.2020 Coverage Remarks
59% 43% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.40 (Max.)(5 points)



Chimei Innolux G104X1-L01 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : Yes (180°)





Chimei Innolux G104X1-L01 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
CCFL Edge light type (Bottom side) 50K(Min.) 2 pcs Straight -
CCFL Electrical : Input Voltage Input Current Power Consumption
460V (Typ.) 6.5/7.0/7.5mA (Min./Typ./Max.) 6.44W (Typ.)
Operating Frequency Startup Voltage
45/80KHz (Min./Max.) 770/960V (Max.)(Ta=+25/0℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-LHH



Chimei Innolux G104X1-L01 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 0.6/0.7A (Typ./Max.) -
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JAE FI-XB30SRL-HF11 1 pcs 30 pins 1.0 mm LVDS-30P1C8B-260A



Chimei Innolux G104X1-L01 Packing Features

Package Box : Amount Weight Size (L×W×H)
30 pcs / box 15.5Kg 500×400×330 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
