G101AGE-L01 INNOLUX 10.1" 1024(RGB)×600 350 cd/m² INDUSTRIAL LCD DISPLAY

G101AGE-L01 INNOLUX 10.1" 1024(RGB)×600 350 cd/m² INDUSTRIAL LCD DISPLAY
G101AGE-L01 INNOLUX 10.1" 1024(RGB)×600 350 cd/m² INDUSTRIAL LCD DISPLAY G101AGE-L01 INNOLUX 10.1" 1024(RGB)×600 350 cd/m² INDUSTRIAL LCD DISPLAY G101AGE-L01 INNOLUX 10.1" 1024(RGB)×600 350 cd/m² INDUSTRIAL LCD DISPLAY

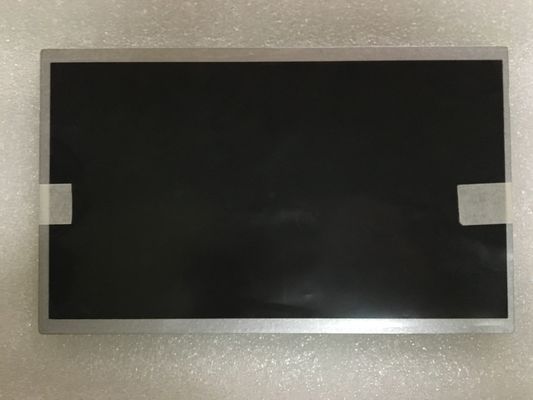

Large Image :  G101AGE-L01 INNOLUX 10.1" 1024(RGB)×600 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G101AGE-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

G101AGE-L01 INNOLUX 10.1" 1024(RGB)×600 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G101AGE-L01 BRAND: INNOLUX
SIZE: 10.1INCH BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 1024(RGB)×600 [WSVGA] 117PPI
VIEWING ANGLEG: 70/70/60/60 (Typ.)(CR≥10) TEMPERATURE RANGE: Perating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

IPS Lcd Display Panels

,

RGB Vertical LCD Display

,

LVDS TFT LCD Module

Innolux G101AGE-L01 Application Details

Basic Info :
Panel Brand

G101AGE-L01Panel Model
Diagonal Size
10.1"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.5G (14.7 m/s²)Vibration Rating
Specific Features :



Innolux G101AGE-L01 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×600, WSVGA
Dot Pitch
0.0725×0.2088 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2175×0.2088 mm (H×V) [117PPI]
Mechanical Size :
Display Area
222.72×125.28 mm (H×V)
Bezel Area
226.34×128.1 mm (H×V)
Outline Dim.
235×143 mm (H×V)
Outline Depth
4.9±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
185/195g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



Innolux G101AGE-L01 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
3/7 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.25 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
46%
sRGB
64% coverage
Adobe RGB
48% coverage
DCI-P3
48% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G101AGE-L01 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
Power Consumption :
2.17W (Max.)



Innolux G101AGE-L01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
11S2P
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
30.25/34.1/37.95V (Min./Typ./Max.)
Current Input
40±2mA
Consumption
1.15/1.36/1.59W (Min./Typ./Max.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
4.7/12.0/21.0V (Min./Typ./Max.)
Current Input
93/134/175mA (Min./Typ./Max.)



Innolux G101AGE-L01 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
125/160mA (Typ./Max.)
Consumption
0.56W (Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20455-040E-12
0.5 mm
40 pins
1 pcs



Innolux G101AGE-L01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
28 pcs / box 12.02 Kgs 435×350×275 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
