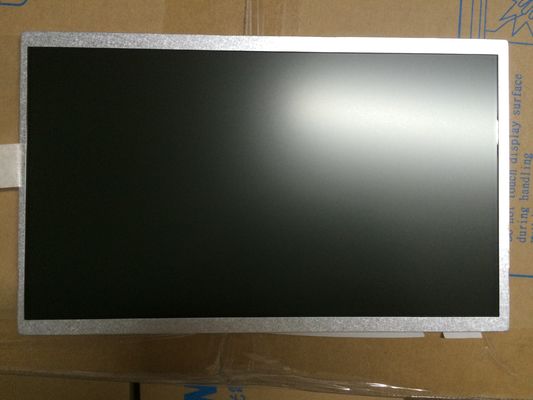

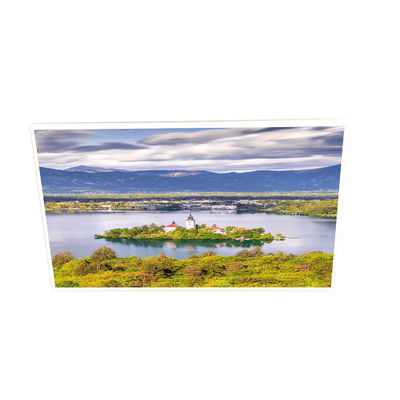

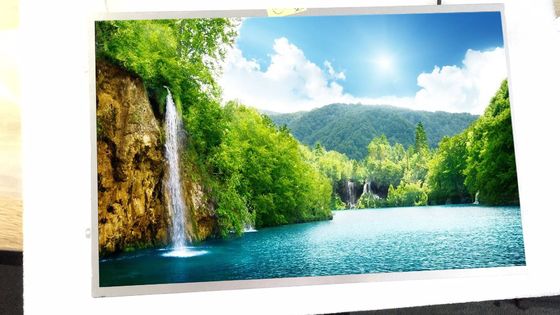

G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY

G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY
G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G070Y3-T01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1500PCS

G070Y3-T01 CHIMEI INNOLUX 7.0" 800(RGB)×480 600 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G070Y3-T01 BRAND: INNOLUX
SIZE: 7.0INCH BRIGHTNESS: 600 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 800(RGB)×480, WVGA, 134PPI
VIEWING ANGLEG: 70/70/60/60 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 M/s²)
High Light:

IPS Lcd Display Panels

,

RGB Vertical LCD Display

,

LVDS TFT LCD Module

Chimei Innolux G070Y3-T01 Application Details

Basic Detail :
Manufacturer

G070Y3-T01Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
Designed For



Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-40 ~ 90 °C
RoHS

3.0G (29.4 m/s²)Vibration Level



Chimei Innolux G070Y3-T01 Optical Details

Basic Detail :
Luminance
600 cd/m² (Typ.)
Contrast Ratio
650:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
5/11 (Typ.)(Tr/Td) ms
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
59%
sRGB
77% coverage
Adobe RGB
60% coverage
DCI-P3
61% coverage
Rec.2020
44% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Chimei Innolux G070Y3-T01 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.065×0.1725 mm
Pixel Pitch(W×H)
0.195×0.1725 mm [134PPI]
Physical Size :
Active Viewing
156(W)×82.8(H) mm
Overall Dim.
168(W)×94(H) mm
Bezel Opening
159.3(W)×86.0(H) mm
Overall Depth
5.7/6.65 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
17:9
Shape Style

Fixation :
Without
Other Detail :
Mass
180g (Typ.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



Chimei Innolux G070Y3-T01 Interface Detail

Signal Electrical :
Input Current
2.86/21.0/0.13/0.13mA (Typ.)(ICC/IDD/IGG/IEE)
Input Voltage
3.3/10.5/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Consumption
-
Signal Interface
TTL (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
50 pins
1 pcs



Chimei Innolux G070Y3-T01 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
9S3P
Position
Edge light type (Bottom side)
Exchange
Replaceable
Lamp Shape
3 strings
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
26.1/27.9/29.7V (Min./Typ./Max.)
Input Current
20mA (Typ.)
Consumption
1.674W (Typ.)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


1.0 mm
4 pins
1 pcs
BLE-4PINS-ACCC
Backlight Driver :
No



Chimei Innolux G070Y3-T01 Packing Details

Package Box : Amount Size (L×W×H) Weight
40 pcs / box 15.5 Kgs 435×350×265 mm
