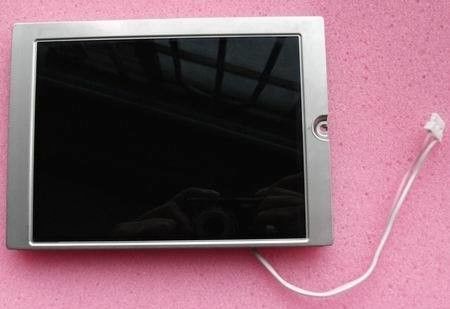

KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY

KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY
KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY

Large Image :  KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KCG057QV1DB-G70
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: KCG057QV1DB-G70 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 400 (Typ.)(cd/m²) Screen Type: LCM , CSTN-LCD
Signal Type: Parallel Data (8-bit) , 20 Pins Connector TEMPERATURE RANGE: Storage Temp.: -20 ~ 70 °C
Highlight:

CCFL CSTN LCD Panel

,

VGA Lcd Video Panel

Kyocera KCG057QV1DB-G70 Application Details

Basic Info :
Panel Brand

KCG057QV1DB-G70Panel Model
Diagonal Size
5.7"
Application

CSTN-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
0 ~ 60 °C
Storage Temp.
-20 ~ 70 °C



Kyocera KCG057QV1DB-G70 Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.120×0.360 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Bezel Area
119.4×90.6 mm (H×V)
Outline Dim.
144×104.8 mm (H×V)
Outline Depth
9.0/13.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting poles (4-Φ2.6)
Other Features :
Weight
175g
Surface
Glare (Haze 0%)



Kyocera KCG057QV1DB-G70 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
55:1 (Typ.) (Transmissive)
Viewing Angle
50/50/20/35 (Typ.)(CR≥2)
Optical Mode
STN, Normally Black, Transmissive
Viewing Direction
-
Response Time
180/170 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.300; Wy:0.300
Color Numbers
Color
Color Temperature
7732K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
38%
sRGB
52% coverage
Adobe RGB
39% coverage
DCI-P3
39% coverage
Rec.2020
28% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera KCG057QV1DB-G70 Electronics Details

Frame Frequency :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KCG057QV1DB-G70 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
75K(Typ.) (Hours)
Replacement
-
Lamp Shape
U shape
Position
Edge light type
Lamp Electrical :
Voltage Input
685V (Typ.)
Current Input
3.0/4.0/6.0mA (Min./Typ./Max.)
Frequency
30/100KHz (Min./Max.)
Kick-off Voltage
1035/1550V Max.)(Ta=+25/0℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
Optional
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL



Kyocera KCG057QV1DB-G70 Interface Detail

Signal Systerm :
Parallel Data (8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3/5.0V (Typ.)(VDD)
Current Input
40.5/27.0mA (Typ.)(3.3V/5.0V)(IDD)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
Kyocera Elco
08-6210-020-340-800+
0.5 mm
20 pins
1 pcs
PD-20P1C8B-010A





FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY 0KCG057QV1DB-G70 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL INDUSTRIAL LCD DISPLAY 1
