Product Details:
|

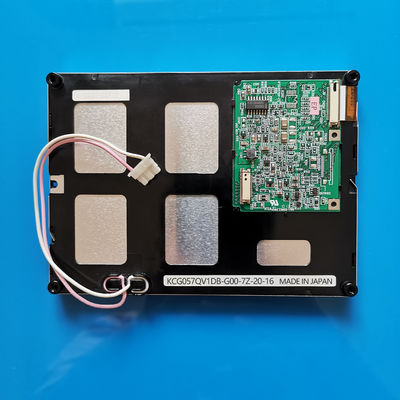

| MODEL NUMBER: | KCG057QV1DB-G00 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 160 Cd/m² (Typ.) | Type: | CSTN-LCD , LCM |
| Interface Type: | Parallel Data (8-bit) 20 Pins Connector | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C |
| Highlight: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Type | Model Alias | |||
| KCG057QV1DB-G00 | CSTN-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 60 °C | -20 ~ 60 °C |
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | 119.4×90.6 mm | 144×104.8 mm | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 175g (Typ.) | - | Glare (Haze 0%) | ||
| Holes & Brackets : | Rear mounting poles (4-Φ2.6) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 160 cd/m² (Typ.) | STN, Normally Black, Transmissive | 55:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 50/50/20/35 (Typ.)(CR≥2) | 190/170 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7732K | Color | X:0.300; Y:0.300 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 39% | 53% | 41% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 40% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Refresh Rate : | 75Hz |
|---|---|
| Driving Method : | Duty: 1/240 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 54K(Typ.) | 1 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 320V (Typ.) | 3.0/5.0/6.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 40/100KHz (Min./Max.) | ||||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| Optional | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VDD) | 40.5/27.0mA (Typ.)(3.3V/5.0V)(IDD) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-020-340-800 | 1 pcs | 20 pins | 0.5 mm | ||
