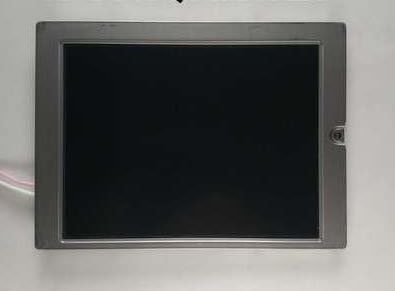

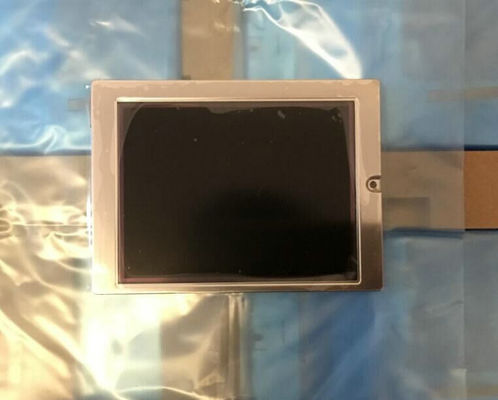

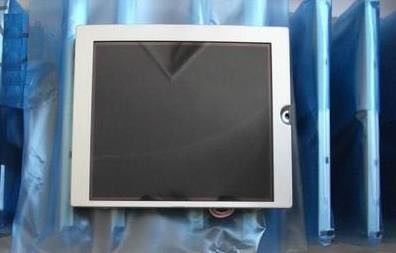

Product Details:
|
| MODEL NUMBER: | KCG047QVLAF-G040 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 4.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 150 Cd/m² (Typ.) | Signal Type: | Parallel Data (8-bit) , Connector 20 Pins |
| Screen Type: | LCM, CSTN-LCD | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
| Highlight: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brand | Model | KCG047QVLAF-G040 | |
|---|---|---|---|---|
| Type | LCM CSTN-LCD | Used For | ||
| Screen Size | 4.7" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration |
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.100×0.300 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.300×0.300 (H×V) [84PPI] | |
| Mechanical Size : | Active Area(mm) | 95.98(H) × 71.98(V) | Bezel Area(mm) | 100.6(H) × 76.6(V) |
| Outline Dim.(mm) | 122.4(H) × 90(V) | Depth(mm) | 5.7/9.9 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 90g | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 150 (Typ.) | Contrast Ratio | 60:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 50/50/40/70 (Typ.)(CR≥2) | Display Mode | STN, Normally Black, Transmissive | |
| Best View on | - | Response(ms) | 250/200 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.270; Y:0.310 | Display Colors | Color |
| Color Temperature | 9996K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 56% | sRGB | 76% coverage |
| Adobe RGB | 58% coverage | DCI-P3 | 58% coverage | |
| Rec.2020 | 42% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VDD) | Current Supply | 33/22mA (Typ.)(5.0V/3.3V)(IDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel Data (8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-020-340-800+ | 1 pcs | 20 pins | 0.5 mm | PD-20P1C8B-010A | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 strings | Life Time | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 23.7/27.2V (Typ./Max.) | Current Supply | 10.0mA (Typ.) | ||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 4 pins | 1.0 mm | BLE-4PINS-ACCA | |||
| Backlight Driver : | No | |||||
