Product Details:
|

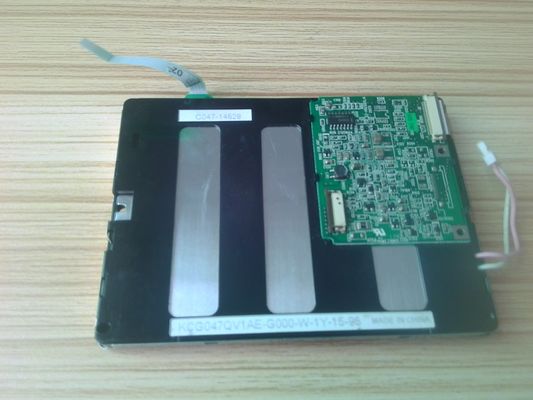

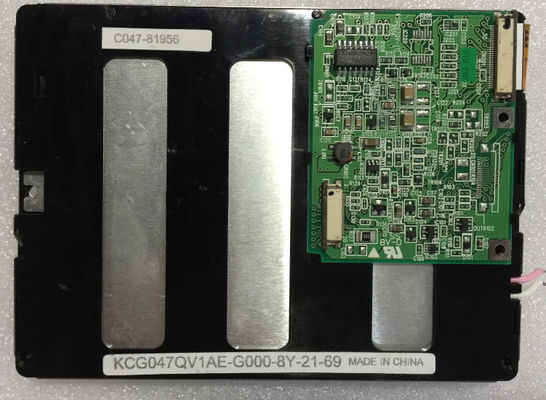

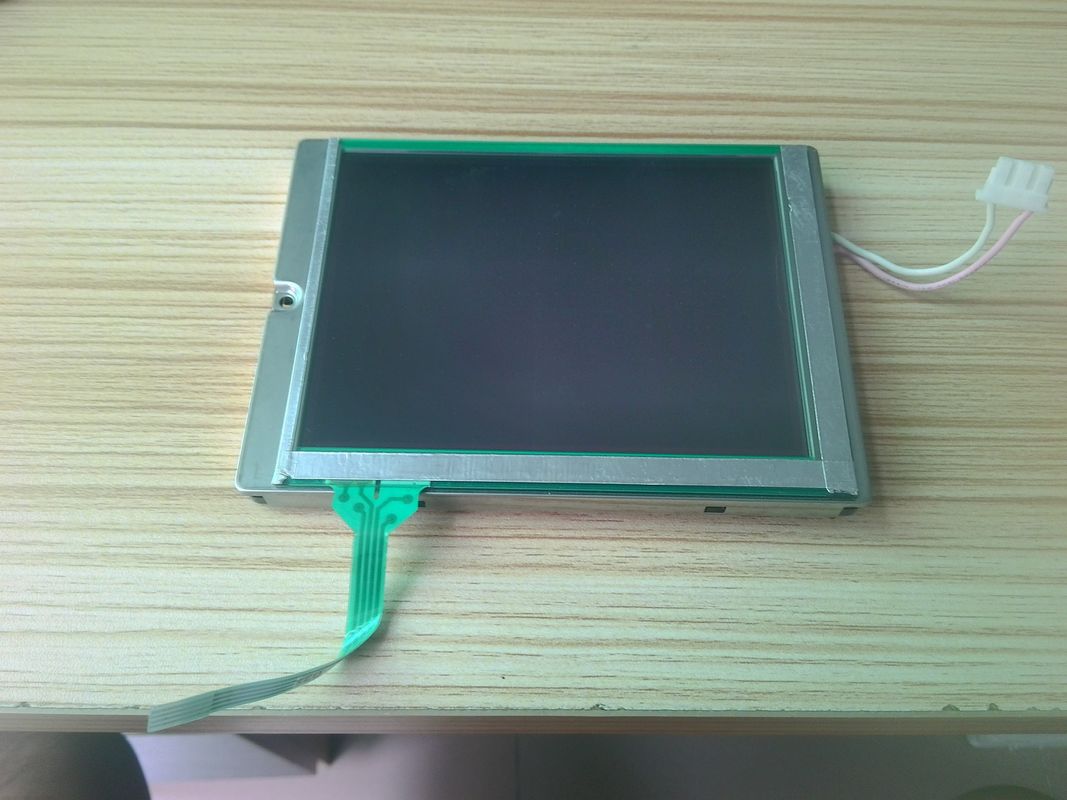

| MODEL NUMBER: | KCG047QV1AE-G000 | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 320×240RGB | SIZE: | 4.7INCH |
| BRIGHTNESS: | 130 Cd/m² (Typ.) | Screen Type: | LCM, CSTN-LCD |
| Backlight: | 1 Pcs CCFL , 54K Hours | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C |
| Highlight: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | KCG047QV1AE-G000 | |
|---|---|---|---|---|
| Panel Type | CSTN-LCD , LCM | Another Name | - | |
| Panel Size | 4.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 130 cd/m² (Typ.) | Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | - | |
| Viewing Angle | 50/50/20/30 (Typ.)(CR≥2) | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Color |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.100×0.300 mm | Pixel Pitch(W×H) | 0.300×0.300 mm [84PPI] | |
| Physical Size : | Active Viewing | 95.98(W)×71.98(H) mm | Overall Dim. | 122.4(W)×90(H) mm |
| Bezel Opening | 100.6(W)×76.6(H) mm | Overall Depth | 9.4 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Touchscreen : | TP Controller | - | TP Interface | - |
| Touch Points | - | TP Technology | Embeded Touch |
| Refresh Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 54K(Typ.) (Hours) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
