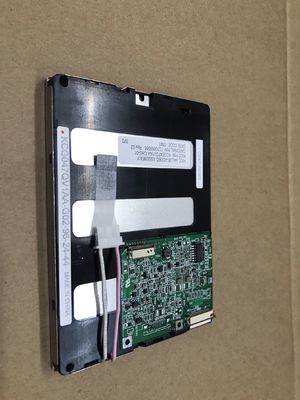

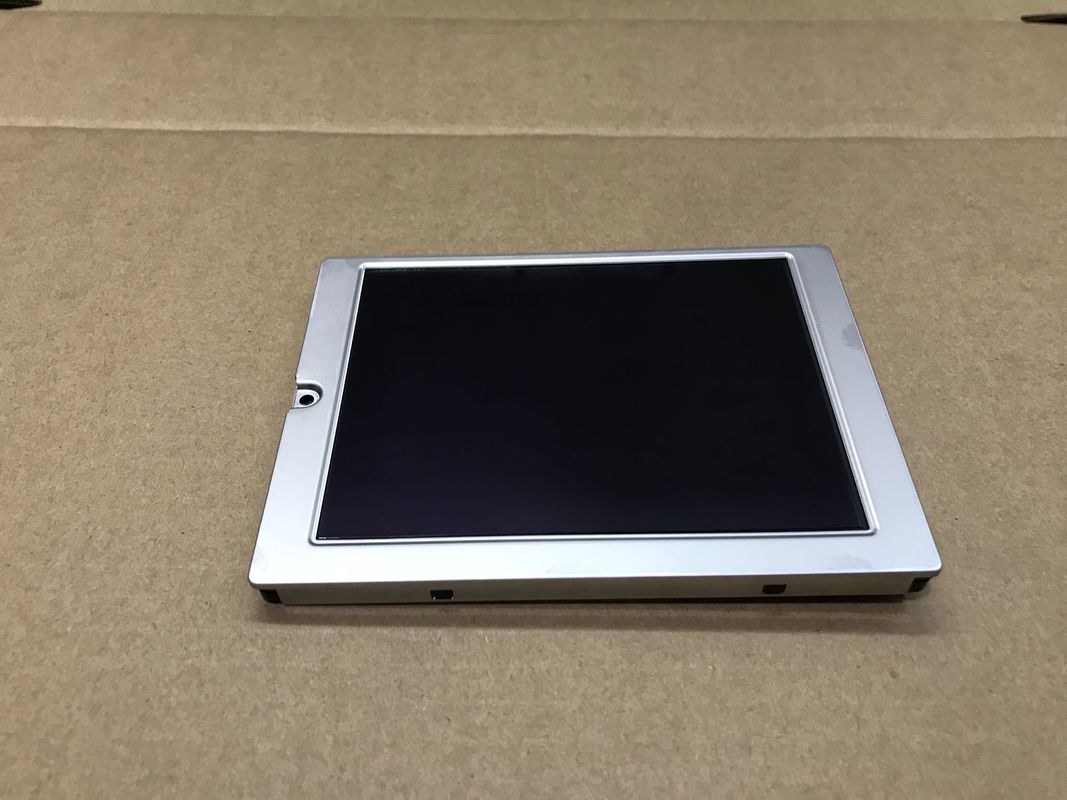

Product Details:
|
| MODEL NUMBER: | KCG047QV1AA-G700 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 4.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 200 Cd/m² (Typ.) | Signal Interface: | Parallel Data (8-bit) , 20 Pins Connector |
| Panel Type: | CSTN-LCD, LCM | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| Highlight: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| KCG047QV1AA-G700 | CSTN-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Panel Size : | 4.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.100×0.300 mm | 0.300×0.300 mm [84PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 95.98×71.98 mm | 100.6×76.6 mm | 122.4×90 mm | 7.6/11.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 120g | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | STN, Normally Black, Transmissive | 30:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 35/35/35/60 (Typ.)(CR≥2) | - | 320/170 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | Color | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 33% | 46% | 34% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 34% | 24% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 45/30mA (Typ.)(3.3V/5.0V)(IDD) | 3.3/5.0V (Typ.)(VDD) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Kyocera Elco | 08-6210-020-340-800+ | 1 pcs | 0.5 mm | 20 pins | PD-20P1C8B-010A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | Straight | 1 pcs | 54K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.0/5.0/6.0mA (Min./Typ./Max.) | 305V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 675/1150V Max.)(Ta=+25/0℃) | 40/100KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | Optional | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
