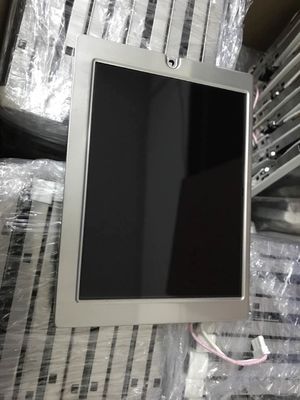

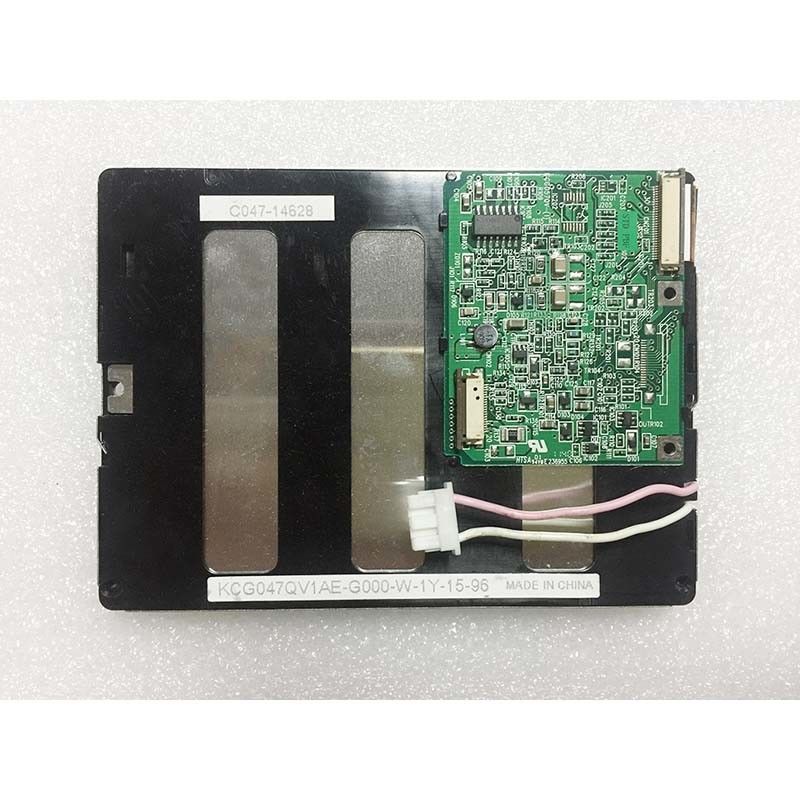

Product Details:
|
| MODEL NUMBER: | KCG047QV1AA-G70 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 4.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 200 Cd/m² (Typ.) | Signal Interface: | Parallel Data (8-bit) , 20 Pins Connector |
| Panel Type: | CSTN-LCD , LCM | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| Highlight: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| KCG047QV1AA-G70 | CSTN-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| - | -20 ~ 70 °C | -30 ~ 80 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 35/35/35/60 (Typ.)(CR≥2) | 190/180 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | STN, Normally Black, Transmissive | 30 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | Color | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 33% | 46% | 34% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 34% | 24% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Size : | 4.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.300×0.300 [84PPI] | 0.100×0.300 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.98(H) × 71.98(V) | 100.6(H) × 76.6(V) | 122.4(H) × 90(V) | 7.6/11.4 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 120g | - | Glare (Haze 0%) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 75Hz |
| Driving Method : | Duty: 1/240 |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | Straight | 54K(Typ.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 305V (Typ.) | 2.0/5.0/6.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 40/100KHz (Min./Max.) | 697/1150V Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | Optional | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VDD) | 40/30mA (Typ.)(3.3V/5.0V)(IDD) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| Kyocera Elco | 08-6210-020-340-800+ | 0.5 mm | 20 pins | 1 pcs | PD-20P1C8B-010A | |
