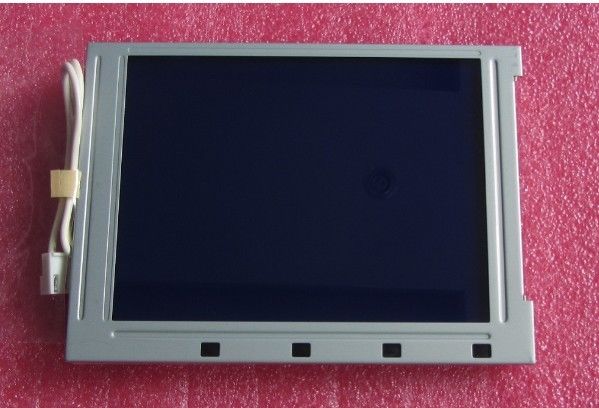

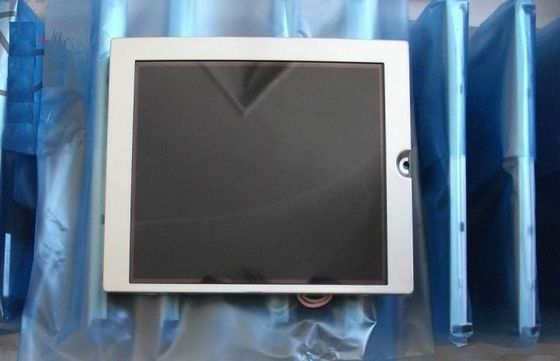

Product Details:
|
| MODEL NUMBER: | KCG047QV1AA-A210 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 4.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 160 Cd/m² (Typ.) | Screen Type: | LCM , CSTN-LCD |
| Signal Type: | Parallel Data | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| KCG047QV1AA-A210 | CSTN-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 4.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.100×0.300 mm | 0.300×0.300 mm [84PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 95.98×71.98 mm | 100.6×76.6 mm | 122.4×90 mm | 7.6/11.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 120g | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 160 cd/m² (Typ.) | STN, Normally Black, Transmissive | 30:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 50/50/15/35 (Typ.)(CR≥2) | - | 490 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Color |
| Frame Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3/5.0V (Typ.)(VDD) | |||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | Straight | 1 pcs | 54K(Typ.) | - | |
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
