KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY
KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

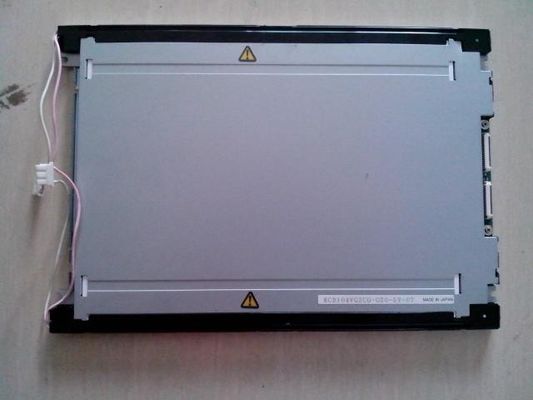

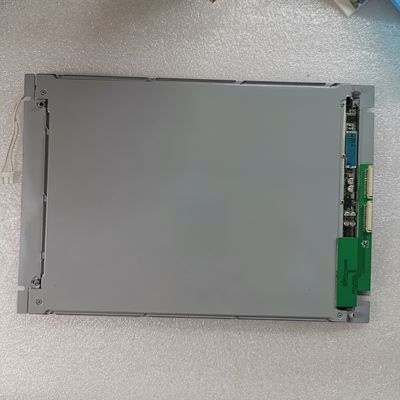

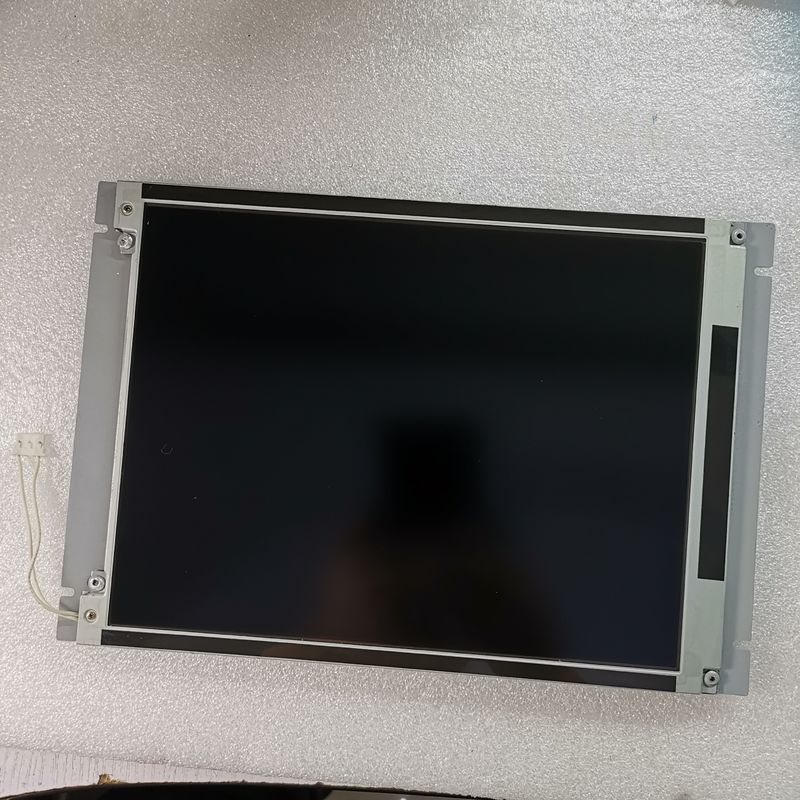

Large Image :  KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KCB104VG2CA-A44
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: KCB104VG2CA-A44 BRAND: Kyocera
SIZE: 10.4INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 150 Cd/m² Type: CSTN-LCD , LCM
Light Source: CCFL [2 Pcs] , 60K Hours , Optional TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C
Highlight:

WLED FSTN LCD display

,

WLED Industrial TFT Display

Kyocera KCB104VG2CA-A44 Application Details

Basic Information :
Brand

KCB104VG2CA-A44Model
Type
CSTN-LCD , LCM
Used For

10.4 inchScreen Size
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS
Vibratio

n



Kyocera KCB104VG2CA-A44 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.110×0.330 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.330×0.330 (H×V) [76PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
217.2(H) × 164.4(V)
Outline Dim.(mm)
264(H) × 183(V)
Depth(mm)
8.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4-R1.7)
Other Spec :
Weight
540g (Typ.)
Treatment
Antiglare



Kyocera KCB104VG2CA-A44 Optical Details

Basic Information :
Luminance(cd/m²)
150 (Typ.)
Contrast Ratio
30:1 (Typ.) (Transmissive)
Viewing Angle
45/45/35/20 (Typ.)(CR≥2)
Display Mode
STN, Normally Black, Transmissive
Best View on
-
Response(ms)
16/80 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
Color
Color Temperature
6638K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
36%
sRGB
50% coverage
Adobe RGB
38% coverage
DCI-P3
37% coverage
Rec.2020
27% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera KCB104VG2CA-A44 Electronics Details

Frame Rate :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KCB104VG2CA-A44 Interface Detail

Signal Electrical :
Voltage Supply
3.3/5.0V (Typ.)(VDD)
Current Supply
71/51mA (Typ.)(3.3V/5.0V)(IDD)
Signal Type :
Parallel Data (8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
molex
53261-1510
1.25 mm
15 pins
1 pcs
PD-29P1C8B-010A
molex
53261-1410
1.25 mm
14 pins
1 pcs






Kyocera KCB104VG2CA-A44 Backlight Details

Backlight Features :
Type
CCFL
Quantity
2 pcs
Position
Edge light type (Top and Bottom)
Replacement
-
Shape
Straight
Life Time
60K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
520V (Typ.)
Current Supply
2.0/4.5/6.0mA (Min./Typ./Max.)
Frequency
40/100KHz (Min./Max.)
Startup Voltage
845/1270V Max.)(Ta=+25/0℃)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HONDA
QZ-19-3F01

3 pins
2 pcs
BLL-3PINS-LNH
Backlight Driver :
Optional





FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
