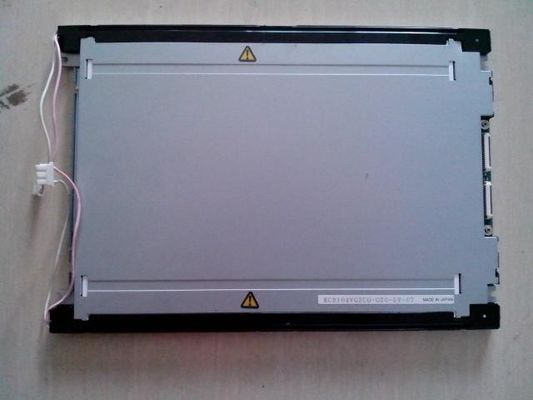

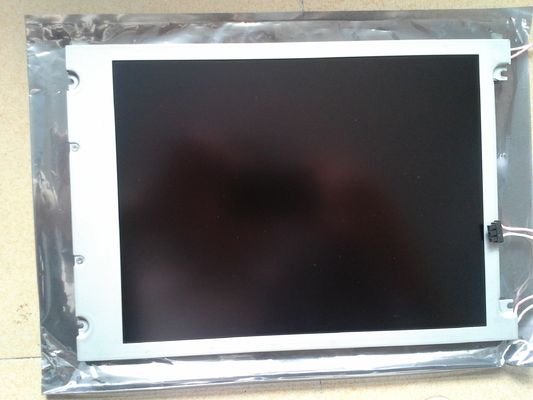

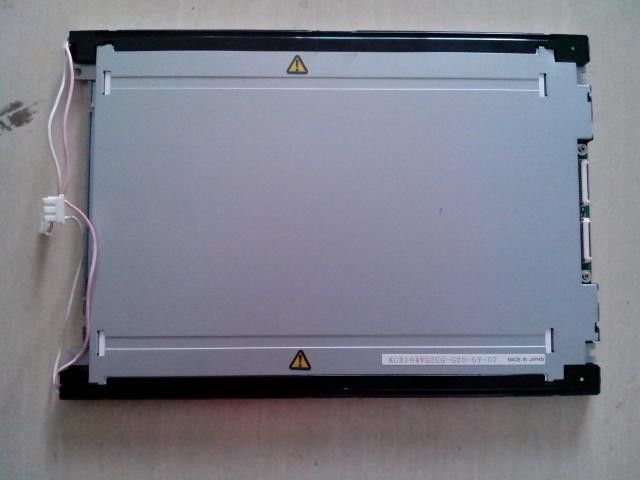

Product Details:
|
| MODEL NUMBER: | KCB104VG2BA-A21 | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 640×480RGB | SIZE: | 10.4INCH |
| BRIGHTNESS: | 150 Cd/m² (Typ.) | Type: | CSTN-LCD , LCM |
| Light Source: | CCFL [2 Pcs] , 60K Hours , Optional | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 40 °C |
| Highlight: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | KCB104VG2BA-A21 | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | CSTN-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 40 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating |
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.110×0.330 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.330×0.330 mm (H×V) [76PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 217.2×164.4 mm (H×V) |
| Outline Dim. | 264×183 mm (H×V) | Outline Depth | 8.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-R1.7) | |||
| Other Features : | Weight | 540g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 150 cd/m² (Typ.) | Contrast Ratio | 20:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/35/20 (Typ.)(CR≥2) | Optical Mode | STN, Normally Black, Transmissive | |
| Viewing Direction | - | Response Time | 16/80 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | Color |
| Color Temperature | 6638K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 55% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 60K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 540V (Typ.) | Current Input | 2.0/5.0/6.0mA (Min./Typ./Max.) | ||
| Frequency | 40/100KHz (Min./Max.) | Kick-off Voltage | 905/1360V Max.)(Ta=+25/0℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | Optional |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HONDA | QZ-19-3F01 | 3 pins | 2 pcs | BLL-3PINS-LNH | ||
| Signal Systerm : | Parallel Data (8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 68/102mA (Typ./Max.) | ||
| Consumption | 340/510mW (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 53261-1510 | 1.25 mm | 15 pins | 1 pcs | PD-29P1C8B-010A | |
| molex | 53261-1410 | 1.25 mm | 14 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
