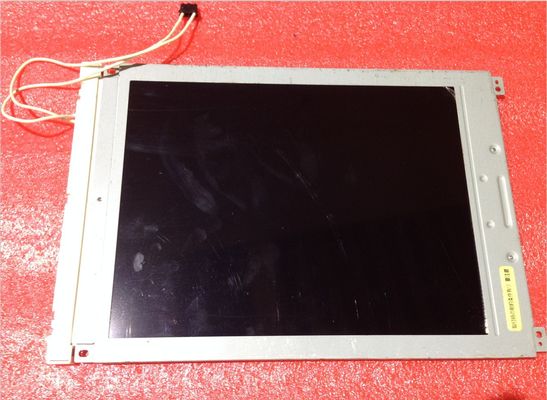

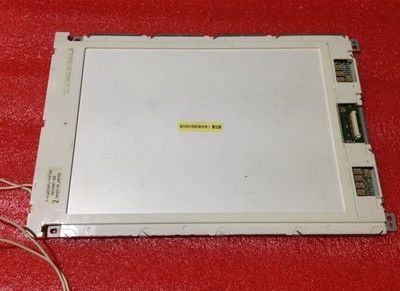

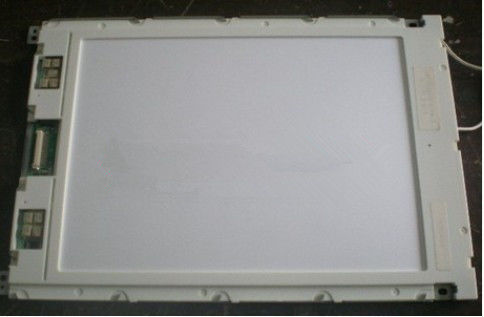

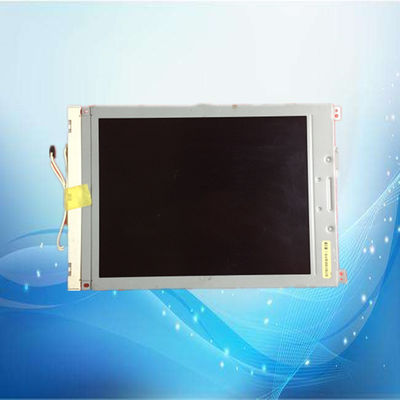

Product Details:
|
| MODEL NUMBER: | F-51430NFU-FW-AA | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 9.4INCH | RESOLUTION: | 640×480RGB |
| Interface Type: | Parallel Data (2ch, 4-bit) , 15 Pins Connector | Type: | FSTN-LCD, LCM |
| Luminance: | 110 Cd/m² (Typ.) | Environment: | Operating Temperature: 0 ~ 50 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| F-51430NFU-FW-AA | FSTN-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 9.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640×480, VGA | Rectangle | 0.30×0.30 mm | 0.30×0.30 mm [84PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 191.97×143.97 mm | 196×148 mm | 260×174 mm | 8.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | - | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 410g (Max.) | |||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 110 cd/m² (Typ.) | STN, Black/White mode, Transmissive | 14:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/60/23/32 (Typ.)(CR≥2) | 12 o'clock | 210/120 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Monochrome (1-bit) |
| Frame Rate : | 70Hz |
|---|---|
| Driving Method : | Duty: 1/240 , Bias: 1/12 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 14/25mA (Typ./Max.)(ICC) | 2.5/5.5V (Min./Max.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (2ch, 4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 53261-1510 | 1 pcs | 1.25 mm | 15 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | 1 pcs | 10K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 6.0±0.5mA | 340V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 855V (Min.) | ||||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| MITSUMI | M63M83-04 | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-HNNL | |
