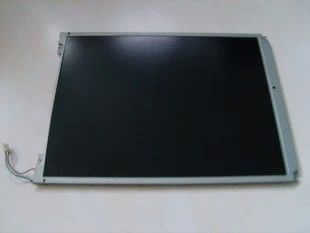

Product Details:
|
| MODEL NUMBER: | DMF-50961NF-FW-AEN | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 7.2INCH | RESOLUTION: | 640×480RGB |
| Luminance: | 90 Cd/m² (Typ.) | Interface Type: | Parallel Data (4-bit) , 15 Pins Connector |
| Type: | FSTN-LCD, LCM | Environment: | Operating Temperature: 0 ~ 50 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| DMF-50961NF-FW-AEN | FSTN-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 7.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640×480, VGA | Rectangle | 0.23×0.23 mm | 0.23×0.23 mm [110PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 147.18×110.38 mm | 153.0×115.4 mm | 205.5×141 mm | 6.5 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 230g (Max.) | - | - | ||
| Holes & Brackets : | Face mounting holes (4 pcs) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 90 cd/m² (Typ.) | STN, Black/White mode, Transmissive | 12:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | - | 270/140 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | Monochrome |
| Refresh Rate : | 70Hz |
|---|
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 10K(Min.) | 1 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 315V (Typ.) | 5.0±0.5mA | |||||
| Operating Frequency | Startup Voltage | |||||
| 420V (Min.) | ||||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| MITSUMI | M63M83-04 | 1 pcs | 4 pins | 2.5 mm | BLL-4PINS-LNNH | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 1.7/6.0mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (4-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 53261-1590 | 1 pcs | 15 pins | 1.25 mm | ||
