Product Details:
|

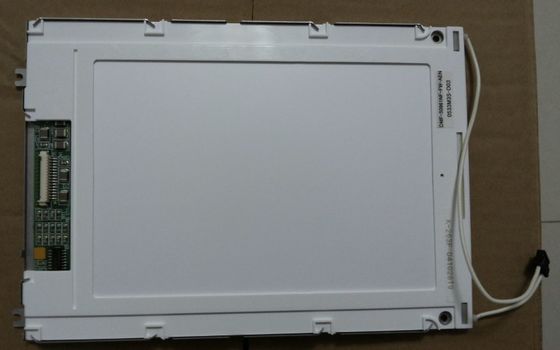

| MODEL NUMBER: | DMF-50961NF-FW | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 640×480RGB | SIZE: | 7.2INCH |
| BRIGHTNESS: | 90 (Typ.)(cd/m²) | Screen Type: | LCM , FSTN-LCD |
| Signal Type: | Parallel Data (4-bit) , 15 Pins Connector | Max. Ratings: | Storage Temp.: -20 ~ 60 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | DMF-50961NF-FW | |
|---|---|---|---|---|
| Panel Type | FSTN-LCD , LCM | Another Name | - | |
| Panel Size | 7.2 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 90 cd/m² (Typ.) | Contrast Ratio | 12 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 270/140 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | - | Operating Mode | STN, Black/White mode, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Pixel Features : | Number of Pixel | 640×480 [VGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.23×0.23 mm | Pixel Pitch(W×H) | 0.23×0.23 mm [110PPI] | |
| Physical Size : | Active Viewing | 147.18(W)×110.38(H) mm | Overall Dim. | 205.5(W)×141(H) mm |
| Bezel Opening | 153.0(W)×115.4(H) mm | Overall Depth | 6.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4 pcs) | |||
| Other Detail : | Mass | 250g (Max.) | Surface | |
| Refresh Rate : | 70Hz |
|---|
| Signal Electrical : | Input Current | 1.7/6.0mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 53261-1590 | 1 pcs | 1.25 mm | 15 pins | ||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 5.0mA (Typ.) | Input Voltage | 315V (Typ.) | ||
| Frequency | - | Turn-on Voltage | 420V (Min.) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| MITSUMI | M63M83-04 | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-LNNH | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
