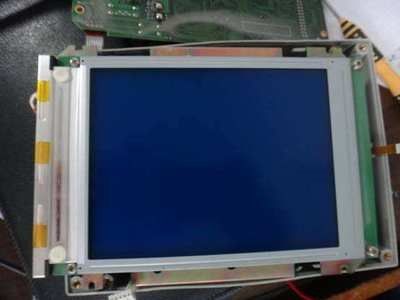

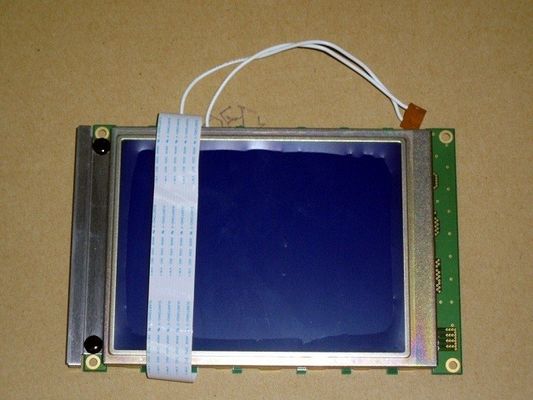

Product Details:
|
| MODEL NUMBER: | DMF-50840NB-FW | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| Interface Type: | Parallel Data (4-bit) , 14 Pins Connector | Type: | STN-LCD, LCM |
| Light Source: | CCFL [1 Pcs] , 25K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 50 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | DMF-50840NB-FW | |
|---|---|---|---|---|
| Panel Type | STN-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 60 cd/m² (Typ.) | Contrast Ratio | 5 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 270/400 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | - | Operating Mode | STN, Blue mode (Negative), Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Color Temperature | - | White Uniformity | 1.43 (Max.)(9 points) |
| Pixel Features : | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.360×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 167.1(W)×109(H) mm |
| Bezel Opening | 120.0(W)×90.4(H) mm | Overall Depth | 11.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 230g (Max.) | Surface |
| Reverse Scan : | No |
|---|
| Signal Electrical : | Input Current | - | Input Voltage | |||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 14 pins | |||||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 25K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 4.0±1mA | Input Voltage | 340V (Typ.) | ||
| Frequency | - | Turn-on Voltage | 850V (Min.) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 4 pins | BLL-4PINS-HNNL | ||||
| Backlight Driver : | No | |||||
