Product Details:
|

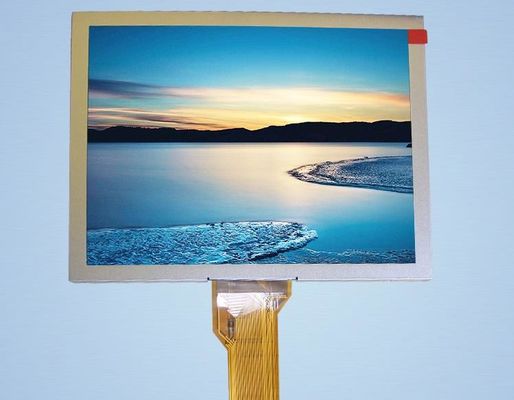

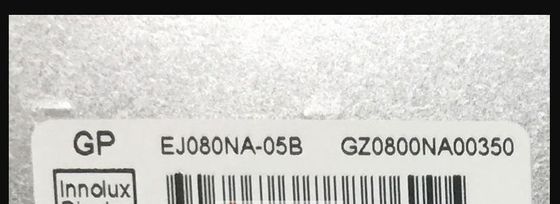

| MODEL NUMBER: | EJ080NA-05B | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 8.0INCH | RESOLUTION: | 800(RGB)×600 (SVGA) 125PPI |
| BRIGHTNESS: | 250CD/M2 | Lamp Type: | WLED |
| VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | IPS Lcd Display Panels,RGB Vertical LCD Display,LVDS TFT LCD Module |
||
| Basic Info : | Panel Brand | Panel Model | EJ080NA-05B | |
|---|---|---|---|---|
| Diagonal Size | 8.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.0675×0.2025 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2025×0.2025 mm (H×V) [125PPI] | |
| Mechanical Size : | Display Area | 162×121.5 mm (H×V) | Bezel Area | 164.8×124.3 mm (H×V) |
| Outline Dim. | 183×141 mm (H×V) | Outline Depth | 5.6±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 241g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 2.138W |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S9P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.9±0.6V | Current Input | 180±18mA | ||
| Consumption | 1.782W (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 5.5/32.0/0.2/-0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) | ||
| Consumption | 0.356W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | DRGB-50P1C8B-115A | |||
