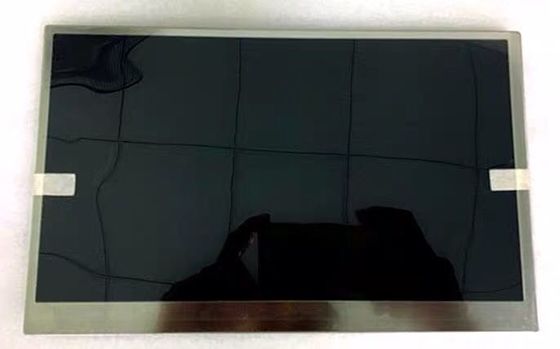

Product Details:
|
| MODEL NUMBER: | DJ101IA-07A | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 10.1" | RESOLUTION: | 1280(RGB)×720 |
| BRIGHTNESS: | 750 Cd/m² | Interface Type: | LVDS (1 Ch, 6/8-bit) , 40 Pins Connector |
| Type: | A-Si TFT-LCD , LCM | Environment: | Operating Temperature: -30 ~ 85 °C |
| High Light: | WVGA Industrial TFT Display,NTSC Lcd Video Panel |
||
| Basic Detail : | Manufacturer | Model Name | DJ101IA-07A | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Basic Information : | Luminance | 750 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 10/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Pixel Features : | Number of Pixel | 1280(RGB)×720 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05825×0.17475 mm | Pixel Pitch(W×H) | 0.17475×0.17475 mm [145PPI] | |
| Physical Size : | Active Viewing | 223.68(W)×125.82(H) mm | Overall Dim. | 238.6(W)×148(H) mm |
| Bezel Opening | 226.68(W)×128.82(H) mm | Overall Depth | 6.5/9.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 330g (Max.) | Surface | Antiglare |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.6W (Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20647-040E-01 | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 288mA (Typ.) | Input Voltage | 22.6/27.2V (Min./Max.) | ||
| Consumption | 7.84W (Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 26 pcs / box | 620×345×240 mm | 10.4 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
