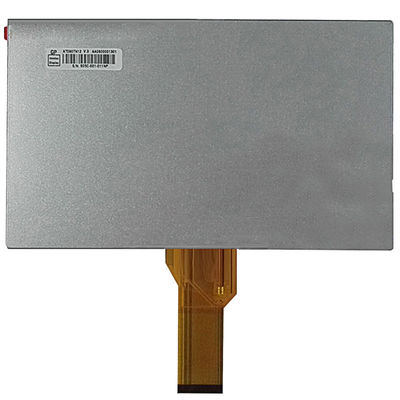

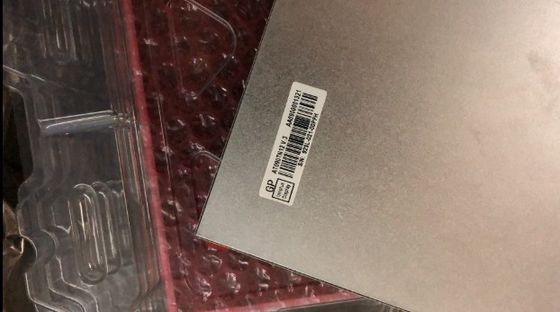

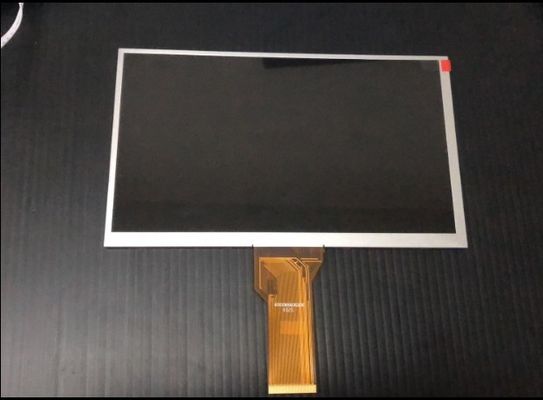

Product Details:
|
| MODEL NUMBER: | AT090TN12 V.3 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 9.0INCH | RESOLUTION: | 800(RGB)×480 [WVGA] 104PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 250CD/M2 |
| VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | WVGA Industrial TFT Display,NTSC Lcd Video Panel |
||
| Basic Information : | Brand Name | Model Name 1 Compatible | Type | Model Alias |
|---|---|---|---|---|
| AT090TN12 V.3 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 9.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0825×0.2327 mm | 0.2475×0.2327 mm [104PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 198×111.696 mm | 201.0×114.7 mm | 211.1×126.5 mm | 5.9±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 253g (Typ.) | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K/16.2M (6-bit / 6-bit + Dithering) | X:0.310; Y:0.330 | |
| White Uniformity : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 3S11P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.9±0.6V | 220±22mA | 2.05W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) | 5.5/32.0/0.3/-0.3mA (Typ.)(IDVDD/IAVDD/IGH/IGL) | 360mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| TTL (1 ch, 6/8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | DRGB-50P1C8B-115A | |||
