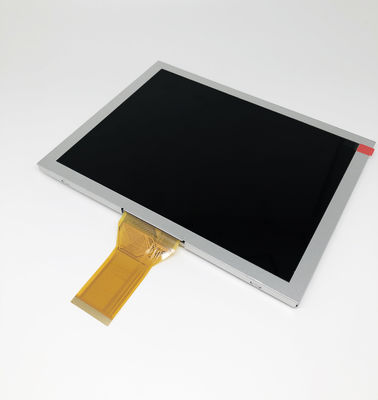

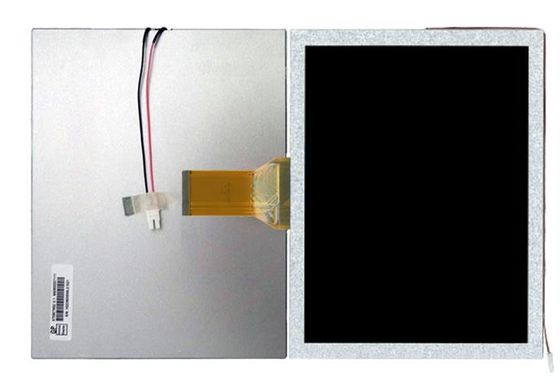

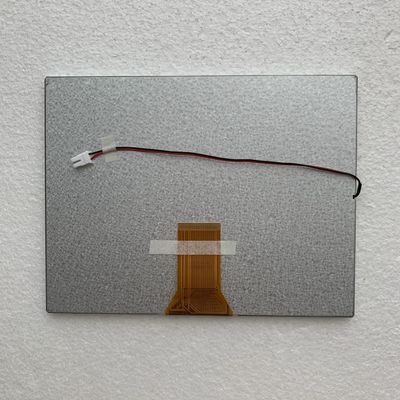

AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY
AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT080TN52 V.3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

AT080TN52 V.3 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AT080TN52 V.3 BRAND: INNOLUX
SIZE: 8.0INCH RESOLUTION: 800(RGB)×600 (SVGA) 125PPI
BRIGHTNESS: 250CD/M2 Lamp Type: WLED
VIEWING ANGLEG: 70/70/50/70 (Typ.)(CR≥10) TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:

WVGA Industrial TFT Display

,

NTSC Lcd Video Panel

Innolux AT080TN52 V.3 Mechanical Details

Pixel Features : Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.0675×0.2025 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2025×0.2025 (H×V) [125PPI]
Mechanical Size : Active Area(mm) 162(H) × 121.5(V) Bezel Area(mm) 164.8(H) × 124.3(V)
Outline Dim.(mm) 183(H) × 141(V) Depth(mm) 6.3±0.3
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Other Spec : Weight 254g Treatment -



Innolux AT080TN52 V.3 Optical Details

Basic Information : Luminance(cd/m²) 250 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)  Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock Response(ms) 10/15 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.310; Y:0.330 Display Colors 262K/16.2M (6-bit / 6-bit + Dithering)
Color Temperature 6638K White Uniformity 1.33/1.43 (Typ./Max.)(9 points)



Innolux AT080TN52 V.3 Electronics Details

Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 2.138W (Typ.)
Time Controller (T-CON) : Embedded T-CON



Innolux AT080TN52 V.3 Interface Details

Signal Electrical : Voltage Supply 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) Current Supply 5.5/32.0/0.2/-0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
Consumption 356mW (Typ.)
Signal Type : Parallel RGB (1 ch, 6/8-bit) Signal Voltage 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position - Type FPC
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
    1 pcs 50 pins 0.5 mm DRGB-50P1C8B-115A



Innolux AT080TN52 V.3 Backlight Details

Backlight Features: Shape Array Type WLED Position Edge light type
Replacement - Quantity 3S9P Life Time 20K(Min.) (Hours)
Lamp Electrical : Voltage Supply 9.9±0.6V Current Supply 180±18mA
Consumption 1.782W (Typ.)
Interface Features : Position - Type Included in panel signal interface
Backlight Driver : No



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
