Product Details:
|

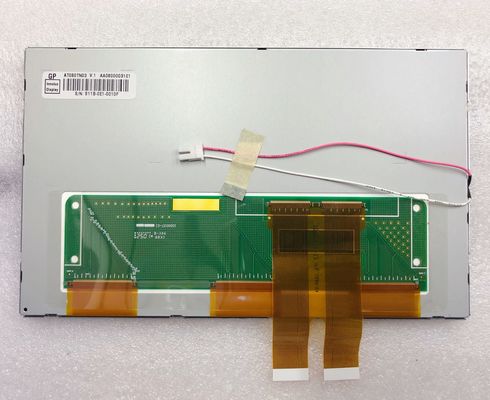

| MODEL NUMBER: | AT080TN03 V.1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 8.0INCH | RESOLUTION: | 800(RGB)×480, WVGA, 116PPI |
| BRIGHTNESS: | 250CD/M2 | Lamp Type: | WLED |
| VIEWING ANGLEG: | 65/65/45/65 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Highlight: | WVGA Industrial TFT Display,NTSC Lcd Video Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| AT080TN03 V.1 | a-Si TFT-LCD , LCM | AT080TN03 V1 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -30 ~ 85 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 65/65/45/65 (Typ.)(CR≥10) | 15/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.2208×0.2070 [116PPI] | 0.0736×0.2070 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 176.64(H) × 99.36(V) | 180.1(H) × 103.4(V) | 192.8(H) × 116.9(V) | 6.4±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 228g (Typ.) | - | Antiglare | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Power Consumption : | 2.05W (Typ.) |
| Time Controller (T-CON) : | Need external T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S9P | Array | 20K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.9±0.6V | 180±18mA | 1.782W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) | 4.0/25.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) | 268mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 30 pins | 2 pc | ||||
