Product Details:
|

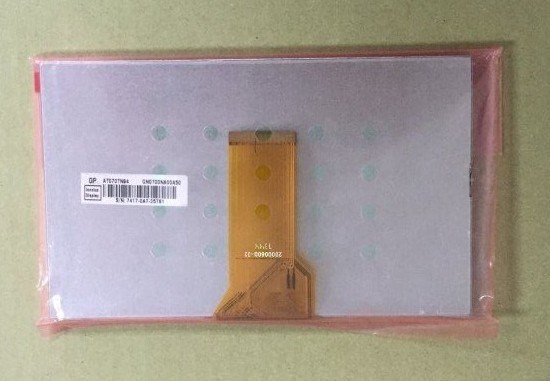

| MODEL NUMBER: | AT070TN94 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0"inch | RESOLUTION: | 800(RGB)×480 (WVGA) 134PPI |
| BRIGHTNESS: | 400CD/M2 | VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10 |
| Lamp Type: | WLED | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | WVGA Industrial TFT Display,NTSC Lcd Video Panel |
||
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0642×0.1790 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1926×0.1790 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 154.08×85.92 mm (H×V) | Bezel Area | 156.7×89.1 mm (H×V) |
| Outline Dim. | 164.9×100 mm (H×V) | Outline Depth | 5.7±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 154g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 25 (Typ.)(Tr+Tf) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Power Consumption : | 1.90W (Typ.) |
| D-IC Detail : | COG NT39419, TN52001 |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S9P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.3±0.9V | Current Input | 170/180/200mA (Min./Typ./Max.) | ||
| Consumption | 1.674W (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) | ||
| Consumption | 226mW (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | DRGB-50P1C8B-115A | |||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 50 pcs / box | 10.68± 0.53 Kgs | 530×355×255 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
