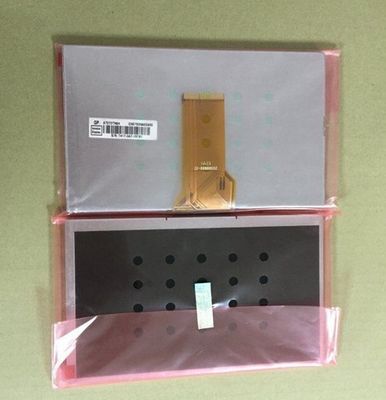

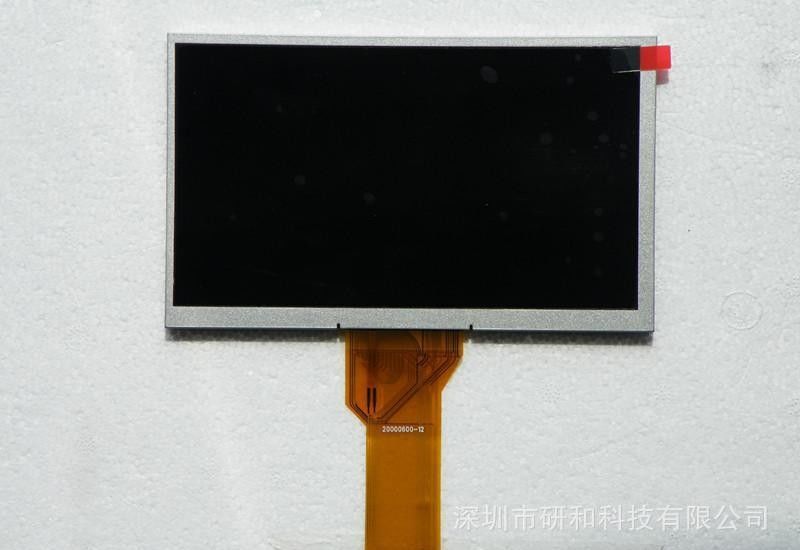

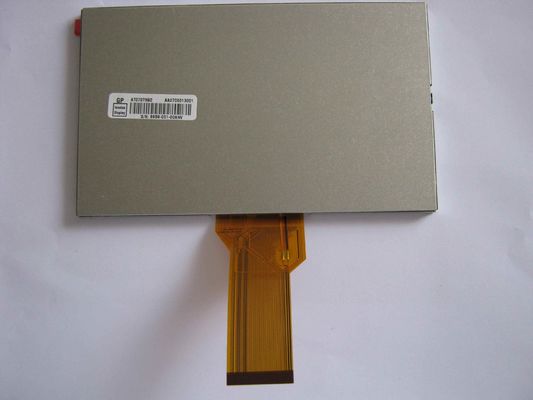

AT070TN93 Innolux 7.0" 800(RGB)×480 320 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : AT070TN93 Innolux 7.0" 800(RGB)×480 320 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	INNOLUX
Certification:	ISO9001
Model Number:	AT070TN93

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1000PCS

Contact Now

AT070TN93 Innolux 7.0" 800(RGB)×480 320 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	AT070TN93	BRAND:	INNOLUX
SIZE:	7.0INCH	RESOLUTION:	00(RGB)×480 [WVGA] 134PPI
BRIGHTNESS:	320CD/M2	VIEWING ANGLEG:	70/70/50/70 (Typ.)(CR≥10)
Lamp Type:	WLED	TEMPERATURE RANGE:	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
Highlight:	WLED FSTN LCD display , WLED Industrial TFT Display

Innolux AT070TN93 Application Details

Basic Detail :	Manufacturer		Model Name	AT070TN93
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	7.0 inch	Designed For
Maximum Ratings :	OP Temperature	-10 ~ 60 °C	ST Temperature	-20 ~ 70 °C

Innolux AT070TN93 Optical Details

Basic Information :	Luminance	320 cd/m² (Typ.)	Contrast Ratio	500 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	10/15 (Typ.)(Tr/Td) (ms)
	Viewing Angle	70/70/50/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Support Color	262K/16.7M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	6638K	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)

Innolux AT070TN93 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)×480 [WVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0642×0.1790 mm	Pixel Pitch(W×H)	0.1926×0.1790 mm [134PPI]
Physical Size :	Active Viewing	154.08(W)×85.92(H) mm	Overall Dim.	164.9(W)×100(H) mm
Physical Size :	Bezel Opening	156.7(W)×89.1(H) mm	Overall Depth	6.7±0.3 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style
Touchscreen :	TP Controller	-	Control Signal	-
Touchscreen :	Touch Points	-	TP Technology	4-wire Resistive Touch
Fixation :	Without
Other Detail :	Mass	182g (Typ.)	Surface	Antiglare

Innolux AT070TN93 Electronics Details

Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	1.90W (Typ.)
Time Controller (T-CON) :	Embedded T-CON

Innolux AT070TN93 Interface Details

Signal Electrical : Input Current 4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) Input Voltage 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Consumption 226mW (Typ.) Signal Interface Parallel RGB (1 ch, 6/8-bit)

Logic Voltage for Signals : 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

Interface Features : Position - Physical Type FPC

Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment

1 pcs 0.5 mm 50 pins DRGB-50P1C8B-115A

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×7(D) mm, viewing area size of 156.7(W)×89.1(H) mm, with surface treament of Antiglare, net weight of 182g (Typ.). As a TN, Normally White, Transmissive LCM product, AT070TN93 can provides 320 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors
