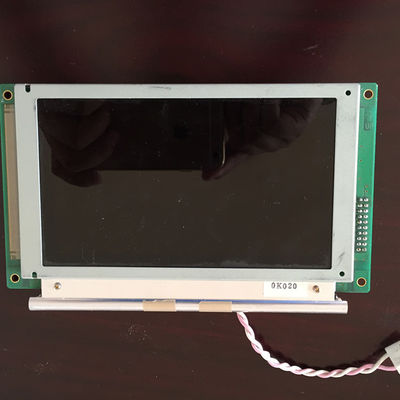

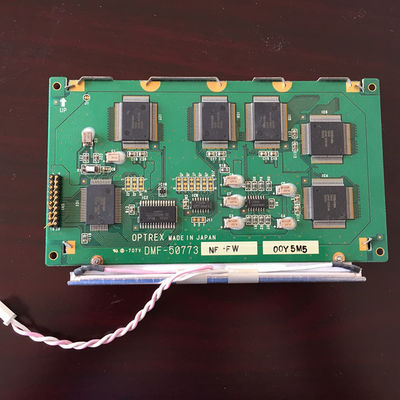

Product Details:
|
| MODEL NUMBER: | DMF-50773NF-FW | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 240×128RGB | SIZE: | 5.4INCH |
| Panel Type: | FSTN-LCD , LCM | Signal Interface: | 8-bit Parallel , 20 Pins Connector |
| Lamp Type: | 1 Pcs CCFL , 15K Hours , Without Driver | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C |
| Bezel Opening: | 126.0(W)×70.0(H) Mm | ||
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brightness | 100 cd/m² (Typ.) | Contrast Ratio | 10:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | - | Optical Mode | STN, Black/White mode, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 250/230 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome |
| Pixel Features : | Pixel Format | 240×128 | Dot Pitch | 0.50×0.50 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.50×0.50 mm (H×V) [50PPI] | |
| Mechanical Size : | Display Area | 119.97×63.97 mm (H×V) | Bezel Area | 126.0×70.0 mm (H×V) |
| Outline Dim. | 170×105 mm (H×V) | Outline Depth | 14.0 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 17:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 250g (Max.) | Surface |
| Frame Frequency : | 70Hz |
|---|---|
| D-IC Detail : | Built-in T6963C-0101 |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 15K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 350V (Typ.) | Current Input | 5.0±1.0mA | ||
| Frequency | - | Kick-off Voltage | 450V (Min.) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 4 pins | 1 pcs | BLL-4PINS-HNNL | ||||
| Signal Systerm : | 8-bit parallel | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 9.0mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 20 pins | 1 pcs | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
