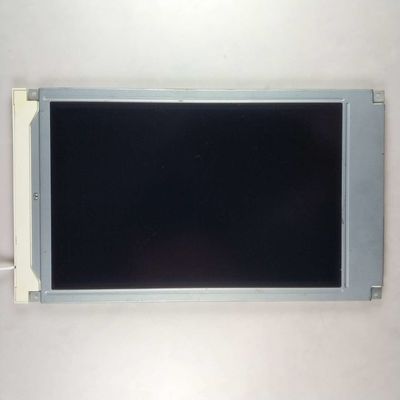

Product Details:
|
| MODEL NUMBER: | DMF-50262NF-FW | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 8.9INCH | RESOLUTION: | 640×400RGB |
| Brightness: | 55 Cd/m² (Typ.) | Panel Type: | FSTN-LCD , LCM |
| Signal Interface: | Parallel Data (4-bit) , 15 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Pixel Features : | Pixel Format | 640×400 | Dot Pitch | 0.300×0.300 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.300×0.300 mm (H×V) [84PPI] | |
| Mechanical Size : | Display Area | 191.97×119.97 mm (H×V) | Bezel Area | 200.0×128.0 mm (H×V) |
| Outline Dim. | 255×147 mm (H×V) | Outline Depth | 7.3 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Features : | Weight | 310g (Max.) | Surface | |
| Basic Information : | Brightness | 55 cd/m² (Typ.) | Contrast Ratio | 12:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 38/50/20/35 (Typ.)(CR≥2) | Optical Mode | STN, Black/White mode, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 190/230 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome |
| Frame Frequency : | 70Hz |
|---|
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 15K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 325V (Typ.) | Current Input | 5.0±1.0mA | ||
| Frequency | - | Kick-off Voltage | 800V (Min.) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| MITSUMI | M63M83-04 | 2.5 mm | 4 pins | 1 pcs | BLL-4PINS-HNNL | |
| Signal Systerm : | Parallel Data (4-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 12mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 53261-1510 | 1.25 mm | 15 pins | 1 pcs | ||
