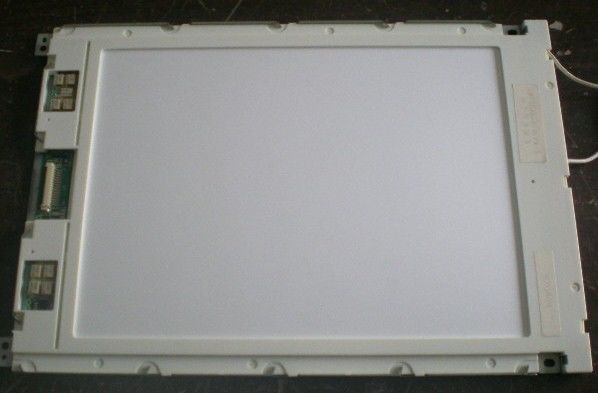

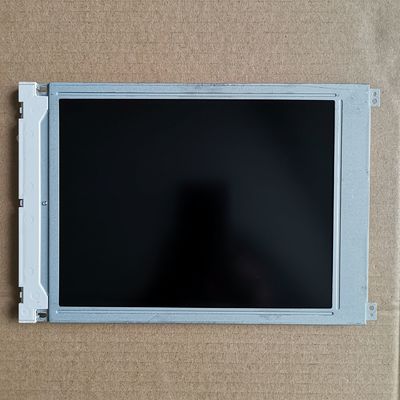

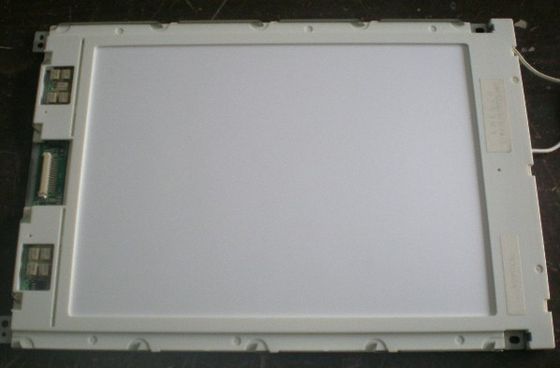

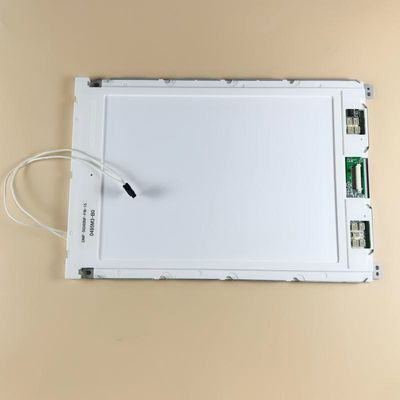

Product Details:
|
| MODEL NUMBER: | DMF50260NF-FW | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 9.4INCH | RESOLUTION: | 640×480RGB |
| Panel Type: | FSTN-LCD , LCM | Lamp Type: | CCFL , 10K Hours |
| Signal Interface: | Parallel Data (4-bit) , 15 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| - | STN | 14 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | Monochrome |
| Panel Size : | 9.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640×480 [VGA] | Rectangle | 0.30×0.30 [84PPI] | 0.30×0.30 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 191.97(H) × 143.97(V) | 196.0(H) × 148.0(V) | 260(H) × 174(V) | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Vertical Frequency : | 60Hz |
|---|
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | - | 10K(Typ.) |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 14.0/25.0mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (4-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| molex | 51021-1500 | 1.25 mm | 15 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
