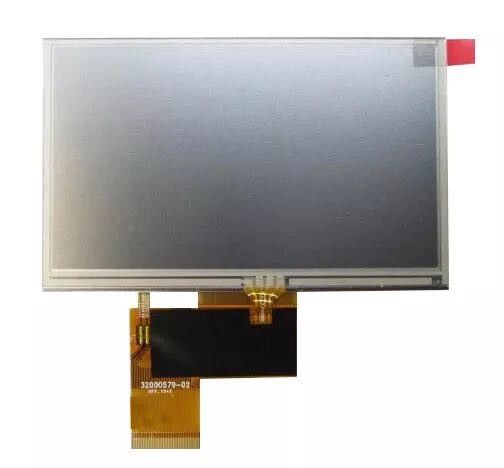

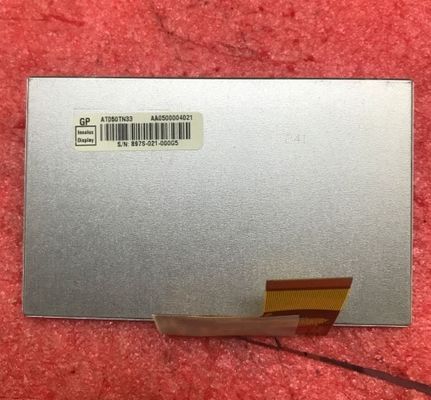

AT050TN33 Innolux 5.0" 480(RGB)×272 300 cd/m² INDUSTRIAL LCD DISPLAY

AT050TN33 Innolux 5.0" 480(RGB)×272 300 cd/m² INDUSTRIAL LCD DISPLAY
AT050TN33 Innolux 5.0" 480(RGB)×272 300 cd/m² INDUSTRIAL LCD DISPLAY AT050TN33 Innolux 5.0" 480(RGB)×272 300 cd/m² INDUSTRIAL LCD DISPLAY AT050TN33 Innolux 5.0" 480(RGB)×272 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  AT050TN33 Innolux 5.0" 480(RGB)×272 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT050TN33
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS

AT050TN33 Innolux 5.0" 480(RGB)×272 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AT050TN33 RESOLUTION: 480(RGB)×272, WQVGA, 109PPI
BRAND: INNOLUX SIZE: 5.0"inch
BRIGHTNESS: 300CD/M2 Lamp Type: WLED
VIEWING ANGLEG: 70/70/50/70 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
High Light:

WVGA Industrial TFT Display

,

NTSC Lcd Video Panel

Innolux AT050TN33 Application Details

Basic Info :
Panel Brand

AT050TN33 1 CompatiblePanel Model
Diagonal Size
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-10 ~ 60 °C
Storage Temp.
-20 ~ 70 °C
RoHS State

-Vibration Rating


Remarks :
3 in 1 FPC





Innolux AT050TN33 Mechanical Details

Pixel Features :
Pixel Format
480(RGB)×272, WQVGA
Dot Pitch
0.077×0.231 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.231×0.231 mm (H×V) [109PPI]
Mechanical Size :
Display Area
110.88×62.832 mm (H×V)
Bezel Area
113.90×65.85 mm (H×V)
Outline Dim.
120.7×75.8 mm (H×V)
Outline Depth
4.25±0.2 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Touch Screen :
Touch Points
-
TP Signal
-
TP Controller
-
Touchscreen
4-wire Resistive Touch, F/G
Other Features :
Weight
83.0g (Typ.)
Surface
Antiglare



Innolux AT050TN33 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
10/15 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
16.7M (8-bit)
Color Temperature
6638K
Uniformity
1.33/1.43 (Typ./Max.)(9 points)



Frame Frequency :
60Hz
Reverse Scan :
No
Power Consumption :
855mW (Typ.)
Time Controller (T-CON) :
Embedded T-CON





Innolux AT050TN33 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 8-bit)
Logic Voltage
GND≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3V (Typ.)(VCC)
Current Input
19/25mA (Typ./Max.)(ICC)
Consumption
63mW (Typ.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
40 pins
1 pcs
DRGB-40P1C8B-080A





Innolux AT050TN33 Carton Details



Package Carton : Amount Net Weight Carton Size (L×W×H)
100 pcs / box 10.116±5% Kgs 530×355×255 mm
