AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY
AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

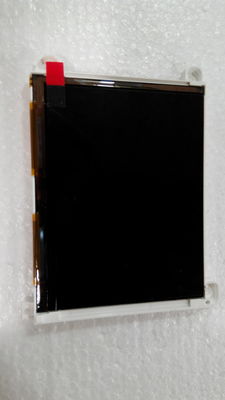

Large Image :  AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT050TN23 V.3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AT050TN23 V.3 BRAND: INNOLUX
SIZE: 5.0 Inch RESOLUTION: 640(RGB)×480 [VGA] 160PPI
BRIGHTNESS: 350CD/M2 Lamp Type: WLED
VIEWING ANGLEG: 70/70/50/70 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

WVGA Industrial TFT Display

,

NTSC Lcd Video Panel

Innolux AT050TN23 V.1 Application Details

Basic Information :
Brand
AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY 0
Model
AT050TN23 V.1
Type
a-Si TFT-LCD , LCM
Used For



Screen Size
5.0 inch
Alias
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C





























Innolux AT050TN23 V.1 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.0529×0.1587 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1587×0.1587 (H×V) [160PPI]
Mechanical Size :
Active Area(mm)
101.568(H) × 76.176(V)
Bezel Area(mm)
104.60(H) × 79.20(V)
Outline Dim.(mm)
117.65(H) × 88.43(V)
Depth(mm)
5.7±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Other Spec :
Weight
TBD
Treatment
Antiglare

















































Innolux AT050TN23 V.1 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
10/15 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K (6-bit)
Color Temperature
6638K
White Uniformity
1.33/1.43 (Typ./Max.)(9 points







































Innolux AT050TN23 V.1 Electronics Details



Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON

Innolux AT050TN23 V.1 Interface Details

Signal Electrical :
Voltage Supply
3.3V (Typ.)(VCC)
Current Supply
-
Signal Type :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
40 pins
1 pcs
DRGB-40P1C6B-260B







































Innolux AT050TN23 V.1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
20K(Min.) Hours
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply







































nnolux AT050TN23 V.1 Packing Details

Package Box : Quantity Weight Box Size
68 pcs / box TBD 530×355×255 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

AT050TN23 V.3 Innolux 5.0" 640(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY 1
