AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY
AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

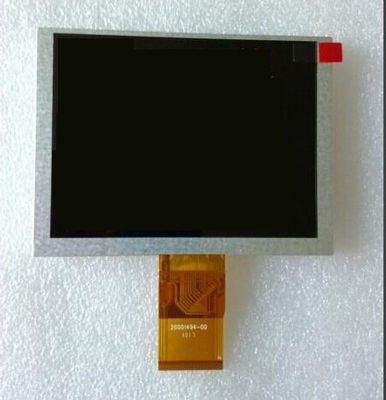

Large Image :  AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT050TN22 V.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 2000PCS
Contact Now

AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AT050TN22 V.1 BRAND: INNOLUX
SIZE: 5.0 Inch RESOLUTION: 640(RGB)×480, VGA, 160PPI
BRIGHTNESS: 250CD/M2 Lamp Type: WLED
VIEWING ANGLEG: 70/70/50/70 (Typ.)(CR≥10) Environment: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

WVGA Industrial TFT Display

,

NTSC Lcd Video Panel

Innolux AT050TN22 V.1 Application Details

Basic Detail :
Manufacturer
AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY 0
Model Name
AT050TN22 V.1
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.0 inch
Designed For

Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS
Vibration Leve

l





































Innolux AT050TN22 V.1 Optical Details

Basic Information :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
10/15 (Typ.)(Tr/Td) ms
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Support Color
16.7M (8-bit)
Color Temperature
6638K
White Variation
1.33/1.43 (Typ./Max.)(9 points)





































Innolux AT050TN22 V.1 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0529×0.1587 mm
Pixel Pitch(W×H)
0.1587×0.1587 mm [160PPI]
Physical Size :
Active Viewing
101.568(W)×76.176(H) mm
Overall Dim.
117.65(W)×88.43(H) mm
Bezel Opening
-
Overall Depth
6.3±0.3 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Other Detail :
Mass
108g (Typ.)
Surface
Antiglare



















































Innolux AT050TN22 V.1 Electronics Details

Reverse Scan :
Yes (U/D, L/R)
Total Consumption :
1.393W (Typ.)
Time Controller (T-CON) :
Embedded T-CON



Innolux AT050TN22 V.1 Interface Details

Signal Electrical :
Input Current
30/18/0.17/0.18mA (Typ.)(ICC/IDD/IGH/IGL)
Input Voltage
3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Consumption
193mW (Typ.)
Signal Interface
Parallel RGB (1 ch, 8-bit)
Logic Voltage :
0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Features :
Position
-
Physical Type
FPC
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment


0.5 mm
50 pins
1 pcs
DRGB-50P1C8B-110A













































Innolux AT050TN22 V.1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
3S6P
Position
Edge light type
Exchange
-
Lamp Shape
Array
Lamp Life
20K(Min.) (Hours)
Lamp Electrical :
Input Voltage
9.3±0.6V
Input Current
120±12mA
Consumption
1.2W (Typ.)
Interface Features :
Position
-
Physical Type
Included in panel signal interface
Backlight Driver :
No











































Innolux AT050TN22 V.1 Packing Details

Package Box : Amount Size (L×W×H) Weight
60 pcs / box 9.29±0.05Kgs 530×355×255 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

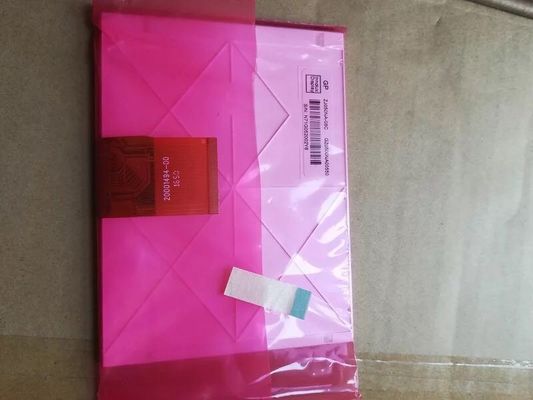

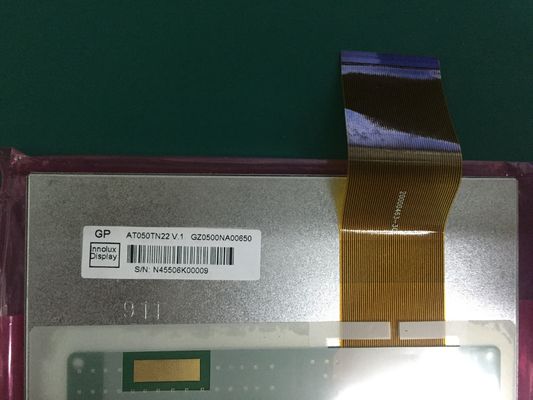

AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY 1AT050TN22 V.1 Innolux 5.0" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY 2
