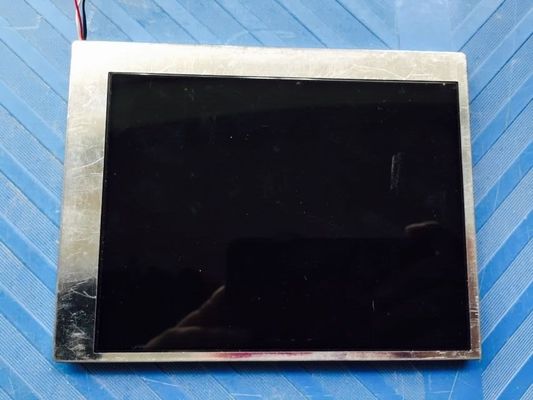

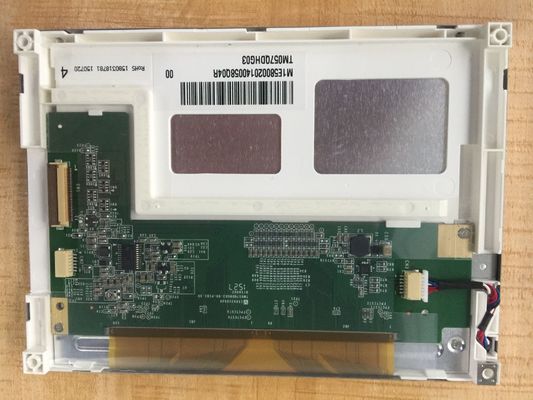

TM057QDHG03 TIANMA 5.7" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : TM057QDHG03 TIANMA 5.7" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM057QDHG03

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

TM057QDHG03 TIANMA 5.7" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TM057QDHG03	BRAND:	TIANMA
SIZE:	5.7INCH	RESOLUTION:	640(RGB)×480 (VGA) 141PPI
BRIGHTNESS:	400 Cd/m² (Typ.)	Viewing Angle:	70/70/70/60 (Typ.)(CR≥10)
TEMPERATURE RANGE:	Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C	SIGNAL LNTERFACE:	LVDS
High Light:	Antiglare NEC TFT Display , QVGA Square Tft Display , VGA Lcd Video Panel

TIANMA TM057QDHG03 Application Details

Basic Info :

Panel Brand

Panel Model

TM057QDHG03

Diagonal Size

5.7"

Application

Panel Type

a-Si TFT-LCD , LCM

Model Alias

Reliability :

Operating Temp.

-20 ~ 70 °C

Storage Temp.

-30 ~ 85 °C

RoHS State

Vibration Rating

Specific Features :

TIANMA TM057QDHG03 Mechanical Details

Pixel Features :

Pixel Format

640(RGB)×480, VGA

Dot Pitch

0.060×0.180 mm (H×V)

Configuration

RGB Vertical Stripe

Pixel Pitch

0.180×0.180 mm (H×V) [141PPI]

Mechanical Size :

Display Area

115.2×86.4 mm (H×V)

Outline Dim.

118.2×89.4 mm (H×V)

Outline Dim.

144×104.6 mm (H×V)

Outline Depth

12.3/12.8 (Typ./Max.) mm

Outline Features :

Form Factor

Flat Rectangle

Orientation

Landscape type

Aspect Ratio

4:3 (H:V)

Shape Style

Holes & Brackets :

Without

Other Features :

Weight

165g (Typ.)

Surface

Antiglare, Hard coating (3H)

TIANMA TM057QDHG03 Optical Details

Basic Information :

Brightness

400 cd/m² (Typ.)

Contrast Ratio

500:1 (Typ.) (Transmissive)

Viewing Angle

70/70/70/60 (Typ.)(CR≥10)

Optical Mode

TN, Normally White, Transmissive

Viewing Direction

6 o'clock

Response Time

20 (Typ.)(Tr+Td) ms

Color Performance :

Chromaticity

Wx:0.302; Wy:0.329

Color Numbers

262K (6-bit)

Color Temperature

7099K

Uniformity

1.25/1.33 (Typ./Max.)(9 points)

1931 Color Gamlt :

NTSC Ratio

52%

sRGB

71% coverage

Adobe RGB

54% coverage

DCI-P3

54% coverage

Rec.2020

39% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM057QDHG03 Electronics Details

Frame Frequency :

60Hz

Reverse Scan :

Yes (U/D, L/R)

TIANMA TM057QDHG03 Backlight Details

Back-light Features :

Lamp Type

WLED

Amount

6S3P

Life Time

50K(Typ.) Hours

Replacement

Lamp Shape

3 strings

Position

Edge light type

Interface Features :

Type

Connector

Position

Lamp Driver

With LED Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

JST

SM06B-SRSS-TB

1.0 mm

6 pins

1 pcs

Driver Electrical :

Voltage Input

9.0/12.0/21.0V (Min./Typ./Max.)

Current Input

Consumption

1.20W (Typ.)

TIANMA TM057QDHG03 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	40 pcs / box	-	530×350×250 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM057QDHG03 TIANMA 5.7" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY 11

TM057QDHG03 TIANMA 5.7" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY 12

TIANMA TM057QDHG03 Interface Details

Signal Systerm :

Parallel RGB (1 ch, 6-bit)

Logic Voltage

0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC

Signal Electrical :

Voltage Input

3.3V (Typ.)

Current Input

195/310mA (Typ./Max.)

Interface Features :

Type

Connector

Position

Connector Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

STARCONN

089H33-000100-G2-R

0.5 mm

33 pins

1 pcs
