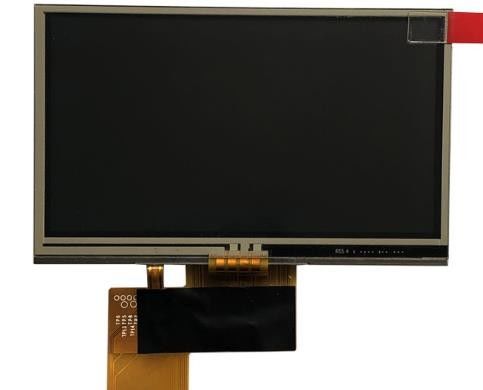

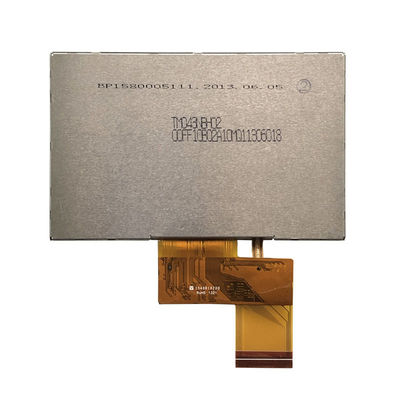

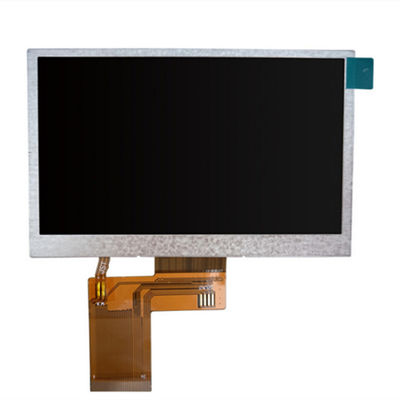

Product Details:
|
| MODEL NUMBER: | TM043NDH05 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.3"inch | RESOLUTION: | 480(RGB)×272, WQVGA, 128PPI |
| TEMPERATURE RANG: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | Display Colors: | 16.7M |
| Active Area: | 95.04(W)×53.856(H) Mm | ||
| Highlight: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM043NDH05 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×272, WQVGA | RGB Vertical Stripe | 0.066×0.198 mm | 0.198×0.198 mm [128PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 95.04×53.856 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | - | |
| Good View at | Viewing Angle | Response Time | |
| - | - | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.7M (6-bit + Hi-FRC) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in HX8257A |
| Time Controller (T-CON) : | Embedded T-CON |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm. As a TN, Normally White, Transmissive LCM product, TM043NDH05 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. TM043NDH05 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of TM043NDH05 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with TIANMA or it's distributo
