Product Details:
|

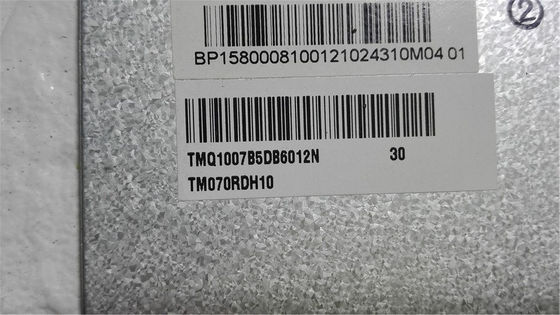

| MODEL NUMBER: | TM070RDH10-20 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480, WVGA, 134PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
TM070RDH10-20 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-20 ~ 70 °C | -30 ~ 80 °C | - | |
| Designed For : |
|
|||
| Specific Features : |
|
|||
| Remarks : | 80.15mm length FPC | |||
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0642×0.1790 mm | 0.1926×0.1790 mm [134PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 154.08×85.92 mm | 157.08×89.39 mm | 164.9×100 mm | 5.7±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/60/70 (Typ.)(CR≥10) | 12 o'clock | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6371K | 262K/16.7M (6-bit / 6-bit + Dithering) | X:0.315; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 70% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Typ.)(9 points) |
||
| Frame Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 10/30/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL) | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | DRGB-50P1C8B-115A | |||
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 3S8P | 20K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
|||
| 160/200mA (Typ./Max.) | 9.6/10.8V (Typ./Max.) | 1.54/2.16W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 50 pcs / box | TBD | 530×350×250 mm (L×W×H) |
