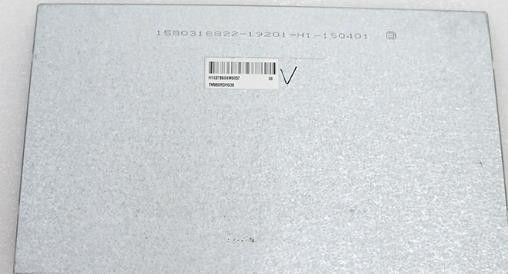

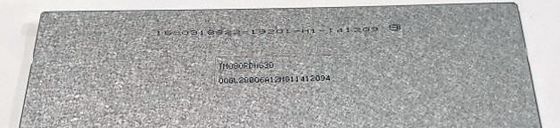

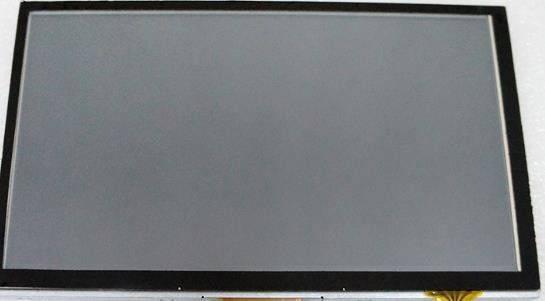

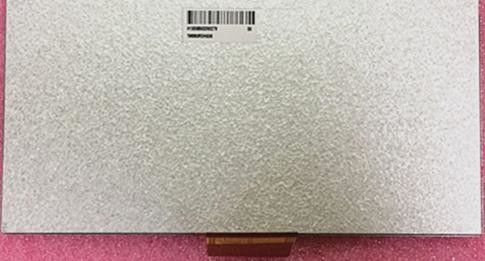

Product Details:
|
| MODEL NUMBER: | TM080RDHG30 | SIZE: | 8.0INCH |
|---|---|---|---|
| BRIGHTNESS: | 450 Cd/m² (Typ.) | RESOLUTION: | 800(RGB)×480, WVGA, 116PPI |
| Lamp Type: | WLED | SIGNAL LNTERFACE: | LVDS |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| BRAND: | TIANMA | ||
| Highlight: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | TM080RDHG30 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0736×0.2070 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2208×0.2070 (H×V) [116PPI] | |
| Mechanical Size : | Active Area(mm) | 176.64(H) × 99.36(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | - | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive | |
| Best View on | - | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.309; Y:0.322 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6774K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Driver IC : | COG Built-in NT39419B + NT52001C |
| Signal Electrical : | Voltage Supply | 3.3/10.4/20/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 10/30/0.3/0.3mA (Max.)(ICC/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6/8-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||

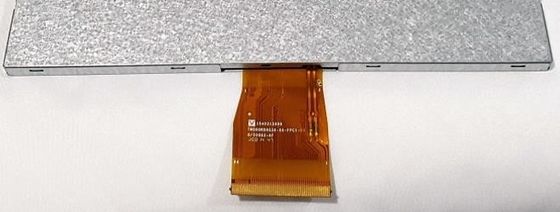

| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 64 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S12P | Life Time | 20K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.6/10.8V (Typ./Max.) | Current Supply | 240/360mA (Typ./Max.) | ||
| Consumption | 2.3W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
