Product Details:
|

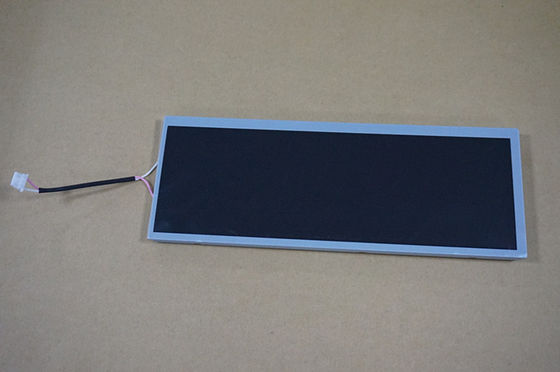

| MODEL NUMBER: | TX26D25VM2BAA | BRAND: | KOE |
|---|---|---|---|
| SIZE: | 10.2 Inch | RESOLUTION: | 800(RGB)×256 [HSVGA] 82PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | TX26D25VM2BAA | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 10.2" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 2.0G (19.6 m/s²) | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 800(RGB)×256, HSVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 78.72(V) | Bezel Area(mm) | 250.0(H) × 82.7(V) |
| Outline Dim.(mm) | 260.2(H) × 96.2(V) | Depth(mm) | 10.55 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | >3:1 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 240g (Typ.) | Treatment |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 50/50/45/50 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 45 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.280; Y:0.290 | Display Colors | 262K (6-bit) |
| Color Temperature | 9969K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 56% | sRGB | 77% coverage |
| Adobe RGB | 58% coverage | DCI-P3 | 58% coverage | |
| Rec.2020 | 42% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 137/165mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.45W (Typ.) | |||||
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FA5B040HP1 | 1 pcs | 40 pins | 0.5 mm | ||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S13P | Life Time | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 12.0±0.5V | Current Supply | 156mA (Typ.) | ||
| Consumption | 1.87W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLE-3PINS-ANC | |
| Backlight Driver : | No | |||||
