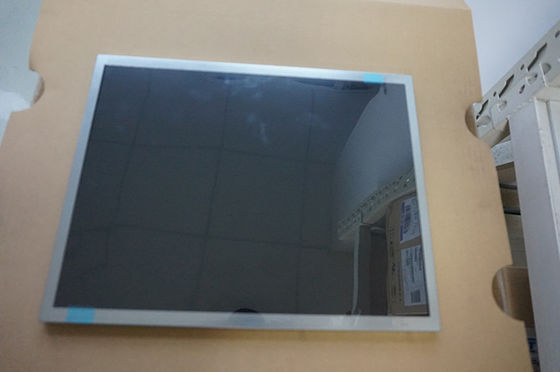

Product Details:
|
| MODEL NUMBER: | TX26D200VM2BAB | BRAND: | KOE |
|---|---|---|---|
| SIZE: | 10.4 Inch | RESOLUTION: | 800(RGB)×600 [SVGA] 96PPI |
| BRIGHTNESS: | 1500CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TX26D200VM2BAB | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 1500 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7639K | 16.7M (8-bit) | X:0.290; Y:0.340 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 53% | 71% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 214.2(H) × 161.4(V) | 230(H) × 180.2(V) | 6.6/10.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Rear mounting Pole (4-Φ3.0) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 380g (Typ.) | ||||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 70K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM02(8.0)B-BHS-1-TB | 8.0 mm | 2 pins | 1 pcs | BDE-2PINS-VG | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±1.0V | 540±50mA | 6.48W (Typ.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 350/483mA (Typ./Max.) | 1.16W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SEB20P-HF13E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-005A | |
