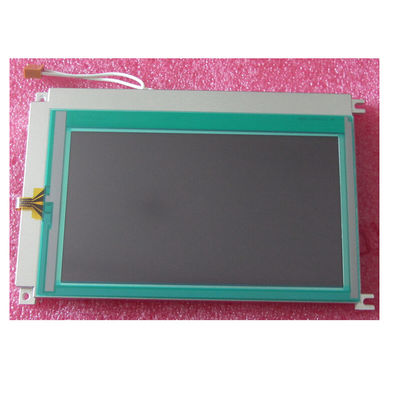

Product Details:
|
| MODEL NUMBER: | TX23D38VM0CAA | BRAND: | HITACHI |
|---|---|---|---|
| SIZE: | 9.0"inch | RESOLUTION: | 800(RGB)×480 [WVGA] 104PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10 | ||
| Highlight: | TFT LCD Panel LVDS,LVDS TFT LCD Module,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand | Model | TX23D38VM0CAA | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 9.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 2.0G (19.6 m/s²) |
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.08125×0.24375 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24375×0.24375 (H×V) [104PPI] | |
| Mechanical Size : | Active Area(mm) | 195(H) × 117(V) | Bezel Area(mm) | 197.0(H) × 119.0(V) |
| Outline Dim.(mm) | 218(H) × 135(V) | Depth(mm) | 11.15±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Ф2.88) | |||
| Other Spec : | Weight | 330g (Typ.) | Treatment | |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.350; Y:0.360 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 4855K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 60% | sRGB | 74% coverage |
| Adobe RGB | 59% coverage | DCI-P3 | 62% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 8.46W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 465/560mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.5W (Typ.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-SEB20P-HF13E | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-110A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S7P | Life Time | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM08B-SRSS-TB | 1 pcs | 8 pins | 1.0 mm | BDE-8PINS-VVVNNGGG | |
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 580±40mA | ||
| Consumption | 6.96W (Typ.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 195(W)×117(H) mm, outline size of 218(W)×135(H)×11.45(D) mm, viewing area size of 197.0(W)×119.0(H) mm, net weight of 330g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX23D38VM0CAA can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX23D38VM0CAA utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
