TX18D46VM2BPA KOE 7.0" 800(RGB)×480 320 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

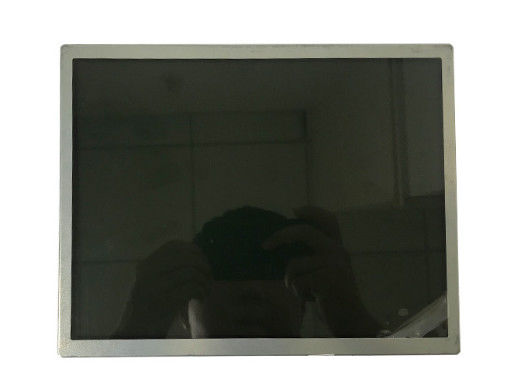

Large Image : TX18D46VM2BPA KOE 7.0" 800(RGB)×480 320 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	KOE
Certification:	ISO9001
Model Number:	TX18D46VM2BPA

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	50PCS

Contact Now

TX18D46VM2BPA KOE 7.0" 800(RGB)×480 320 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TX18D46VM2BPA	BRAND:	KOE
SIZE:	7.0INCH	RESOLUTION:	800(RGB)×480 [WVGA] 133PPI
BRIGHTNESS:	320CD/M2	TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²)
Highlight:	TFT LCD Panel LVDS , LVDS TFT LCD Module , VGA Touch Lcd Video Display

KOE TX18D46VM2BPA Application Details

Basic Information :	Brand Model TX18D46VM2BPA Type a-Si TFT-LCD , LCM Used For Screen Size 7.0 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration 2.0G (19.6 m/s²)
Typical Features :
Remarks :	EOL because of no demand

KOE TX18D46VM2BPA Mechanical Details

Pixel Features :	Resolution 800(RGB)×480, WVGA Dot Pitch(mm) 0.0635×0.1905 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1905×0.1905 (H×V) [133PPI]
Mechanical Size :	Active Area(mm) 152.4(H) × 91.44(V) Bezel Area(mm) 155.5(H) × 93.44(V) Outline Dim.(mm) 165(H) × 106(V) Depth(mm) 6.5/9.9 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 15:9 (H:V) Orientation Landscape type
Touch Panel :	Touch Points - Touch Panel 4-wire Resistive Touch TP Controller Without touch controller Touch Signal -
Mounting :	Rear mounting Pole (4-M2)
Other Spec :	Weight 168g (Typ.) Treatment

KOE TX18D46VM2BPA Optical Details

Basic Information :	Luminance(cd/m²) 320 (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 70/70/65/65 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 20 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.280; Wy:0.300 Display Colors 262K (6-bit) Color Temperature 9480K White Uniformity 1.43 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 44% sRGB 62% coverage Adobe RGB 46% coverage DCI-P3 46% coverage Rec.2020 33% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

KOE TX18D46VM2BPA Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Consumption:	2.1W (Typ.)

KOE TX18D46VM2BPA Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 240mA (Typ.) Consumption 0.8W (Typ.)
Signal Type :	LVDS (1 ch, 6-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JAE FI-SEB20P-HF13E-E1500 1.25 mm 20 pins 1 pcs LVDS-20P1C6B-007A

KOE TX18D46VM2BPA Backlight Details

Backlight Features :	Type WLED Quantity 3S9P Position Edge light type Replacement - Shape Array Life Time 40K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 12.0±0.5 Current Supply 108mA (Typ.) Consumption 1.3W (Typ.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLE-3PINS-ANC
Backlight Driver :	No

TX18D46VM2BPA KOE 7.0" 800(RGB)×480 320 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 2
